TOYOTA DYNA WU300R-TKMLSD3 / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

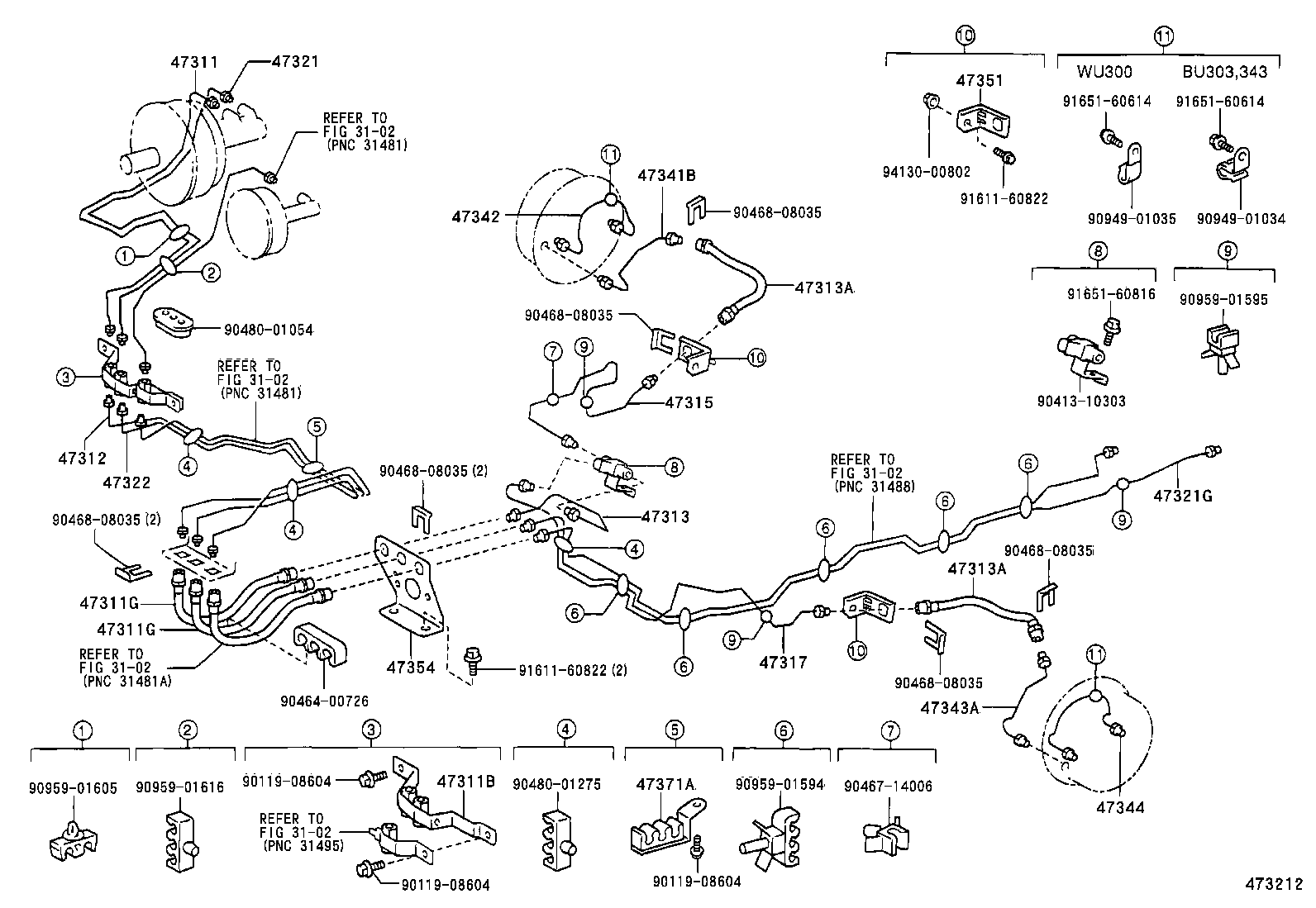

ILLUST NO. 1 OF 4(0209-0612)BU303,343,WU300..IDN

DYNA | BRAKE TUBE CLAMP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47315 - TUBE, FRONT BRAKE, NO.5 47317 - TUBE, FRONT BRAKE, NO.7 47321 - TUBE, REAR BRAKE, NO.1 47321G - TUBE, REAR BRAKE, FRAME NO.1 47322 - TUBE, REAR BRAKE, NO.2 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) 47354 - BRACKET, FRONT FLEXIBLE HOSE 47371A - CLAMP, BRAKE TUBE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
