TOYOTA DYNA WU342R-TKMRBD3 / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

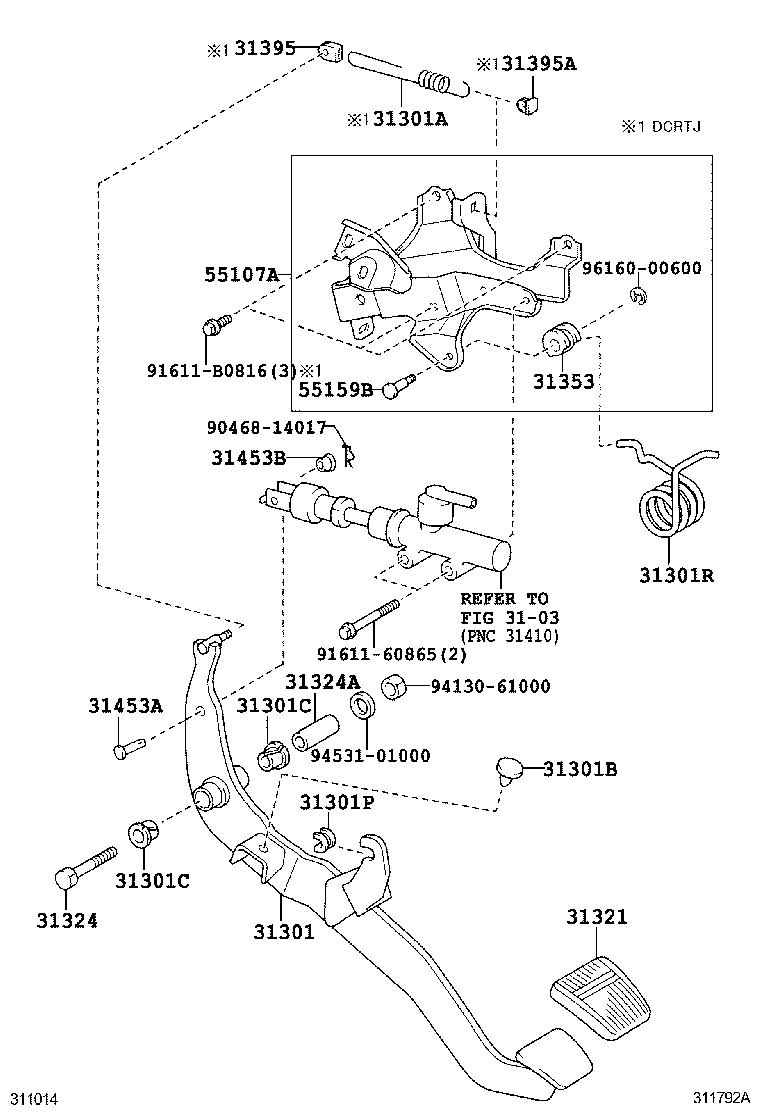

ILLUST NO. 1 OF 2(0612- )DCRTJ,DCRTR..IDN

 DYNA |  CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig 31301 - PEDAL SUB-ASSY, CLUTCH 31301A - SPRING(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31353 - HOLDER, CLUTCH PEDAL SPRING 31395 - HOOK, PEDAL SPRING 31395A - HOOK, PEDAL SPRING, NO.1 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL 55159B - PIN, CLUTCH PEDAL TURN OVER SPRING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
