TOYOTA DYNA WU342R-TKMRBD3 / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SPRING SHOCK ABSORBER

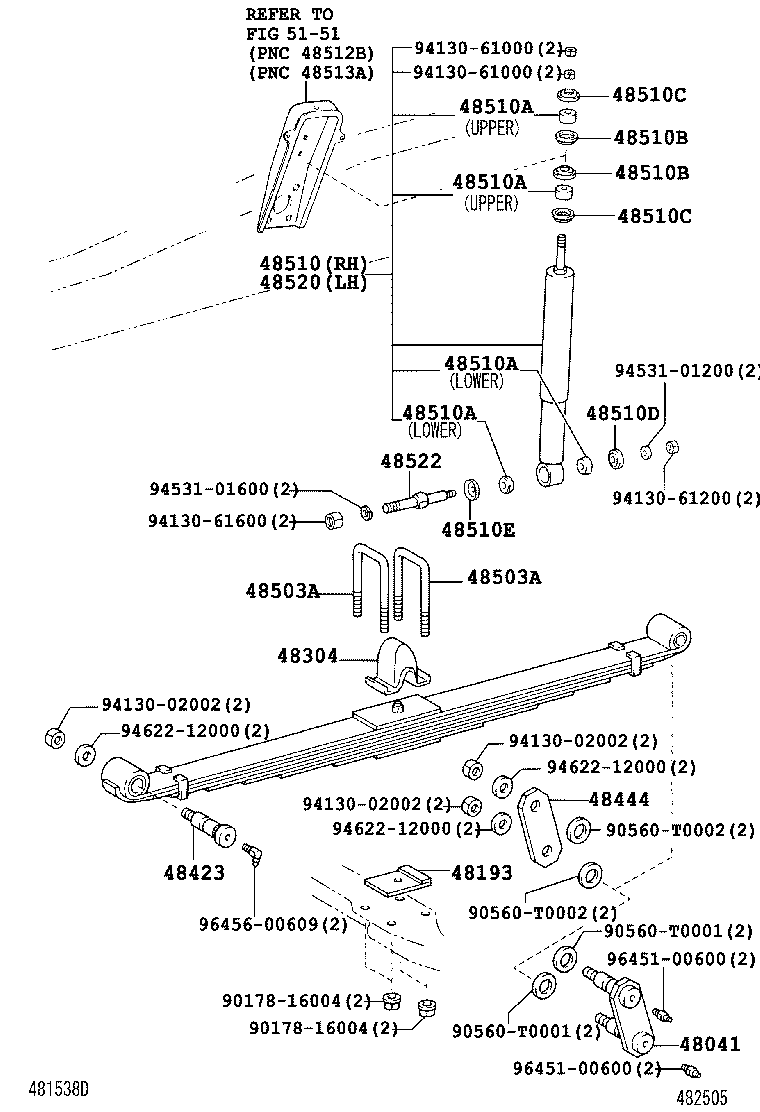

ILLUST NO. 1 OF 2(0612- )75T..DCRTJ

 DYNA |  FRONT SPRING SHOCK ABSORBER 48041 - SHACKLE SUB-ASSY, FRONT SPRING, NO.1 48193 - WEDGE, CASTER 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 48423 - PIN, FRONT SPRING BRACKET 48444 - PLATE, FRONT SPRING SHACKLE, INNER 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510A - CUSHION, FRONT SHOCK ABSORBER 48510A - CUSHION, FRONT SHOCK ABSORBER 48510A - CUSHION, FRONT SHOCK ABSORBER 48510A - CUSHION, FRONT SHOCK ABSORBER 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
