TOYOTA PREVIA TARAGO ACR30R-MRSDKQ / BODY / SLIDE ROLLER RAIL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SLIDE ROLLER RAIL

(0304- )

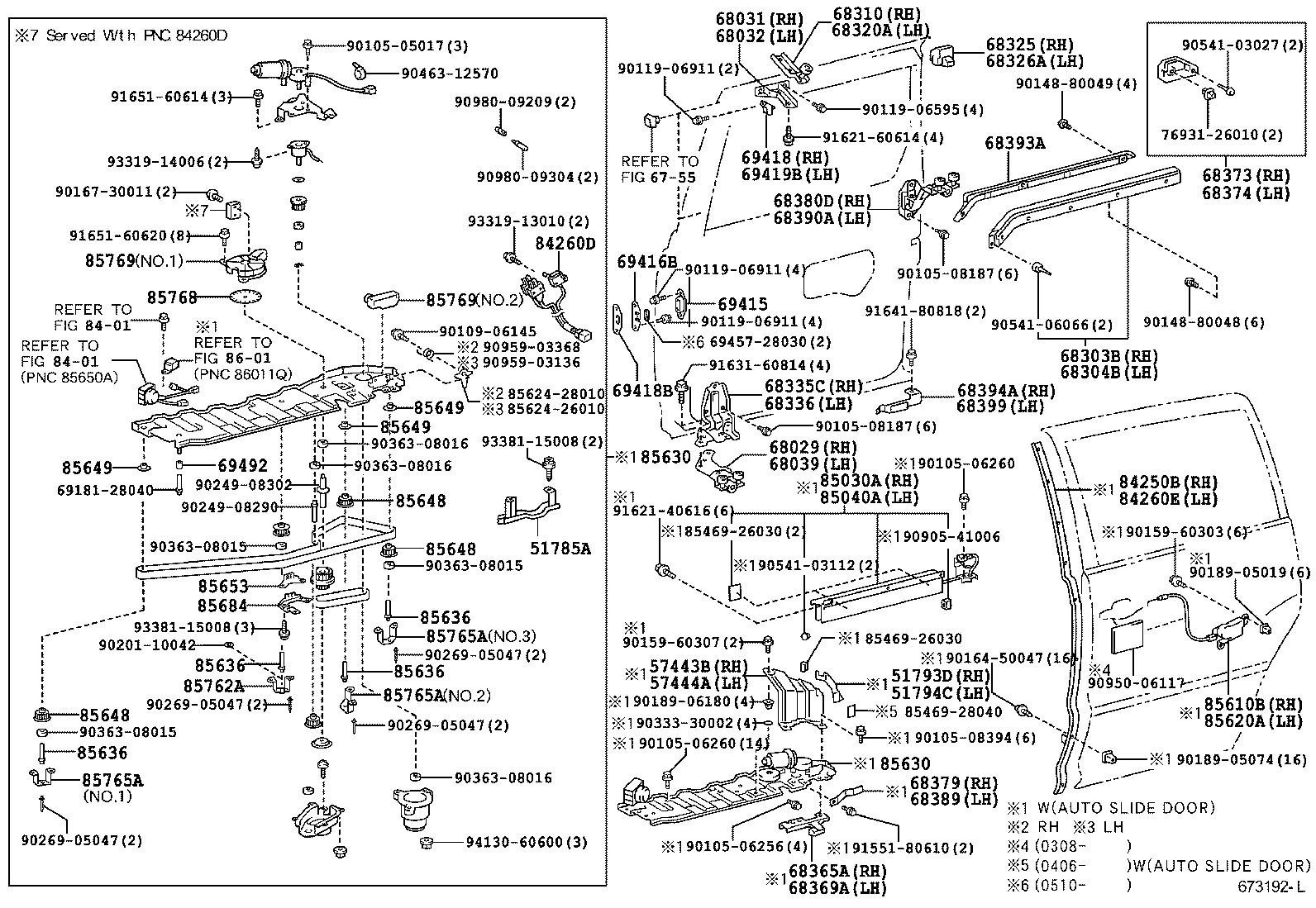

 PREVIA TARAGO |  SLIDE ROLLER RAIL 51785A - REINFORCEMENT, REAR STEP PANEL 51793D - BRACKET, SIDE STEP, NO.1 RH 51794C - BRACKET, SIDE STEP, NO.1 LH 57443B - SUPPORT, SIDE STEP, REAR RH 57444A - SUPPORT, SIDE STEP, REAR LH ** Refer Fig 68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER 68031 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH 68032 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH 68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH 68310 - ROLLER ASSY, SLIDE DOOR, UPPER 68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH 68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH 68335C - ARM, SLIDE DOOR LOWER ROLLER, RH 68336 - ARM, SLIDE DOOR LOWER ROLLER, LH 68365A - BRACKET, SLIDE DOOR LWR RAIL, RH 68369A - BRACKET, SLIDE DOOR LOWER RAIL, LH 68373 - MOULDING, SLIDE RAIL END, RH 68374 - MOULDING, SLIDE RAIL END, LH 68379 - SPRING, SLIDE DOOR CATCH, RH 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH 68389 - SPRING, SLIDE DOOR CATCH, LH 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH 68393A - PROTECTOR, SLIDE DOOR CENTER RAIL 68394A - PLATE, SLIDE DOOR LOWER RAIL, RH 68399 - PLATE, SLIDE DOOR LOWER RAIL, LH  ** Std Part 69415 - STOPPER, SLIDE DOOR DOWN FEMALE 69416B - STOPPER, SLIDE DOOR DOWN MALE 69418 - STOP, SLIDE DOOR OPEN 69418B - SHIM, SLIDE DOOR DOWN STOP MALE 69419B - STOP, SLIDE DOOR OPEN, LH  ** Std Part 69492 - STOPPER, SLIDE DOOR HALF OPEN  ** Std Part ** Refer Fig ** Refer Fig 84250B - SENSOR ASSY, POWER SLIDE DOOR, RH 84260D - SENSOR ASSY, POWER SLIDE DOOR 84260E - SENSOR ASSY, POWER SLIDE DOOR 85030A - RAIL ASSY, POWER SLIDE DOOR HARNESS, RH 85040A - RAIL ASSY, POWER SLIDE DOOR HARNESS  ** Std Part  ** Std Part  ** Std Part 85610B - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH 85620A - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH  ** Std Part  ** Std Part 85630 - MOTOR ASSY, SLIDE DOOR 85630 - MOTOR ASSY, SLIDE DOOR 85636 - SHAFT, DRIVE ROLLER PULLEY 85636 - SHAFT, DRIVE ROLLER PULLEY 85636 - SHAFT, DRIVE ROLLER PULLEY 85636 - SHAFT, DRIVE ROLLER PULLEY 85648 - PULLEY, DRIVE BELT 85648 - PULLEY, DRIVE BELT 85648 - PULLEY, DRIVE BELT 85649 - FLANGE, PULLEY(FOR SLIDE DOOR MOTOR) 85649 - FLANGE, PULLEY(FOR SLIDE DOOR MOTOR) 85649 - FLANGE, PULLEY(FOR SLIDE DOOR MOTOR) 85653 - PLATE, DRIVE BELT 85684 - BRACKET, POWER SLIDE DOOR MOTOR ARM 85762A - BRACKET, BELT IDLER, NO.2 85765A - BRACKET, DRIVE BELT PULLEY 85765A - BRACKET, DRIVE BELT PULLEY 85765A - BRACKET, DRIVE BELT PULLEY 85768 - PLATE, SLIDE DOOR MOTOR CONTROL 85769 - COVER, SLIDE DOOR MOTOR CONTROL PLATE 85769 - COVER, SLIDE DOOR MOTOR CONTROL PLATE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
