TOYOTA VIOS SOLUNA VIOS AXP42L-EEMHKC / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

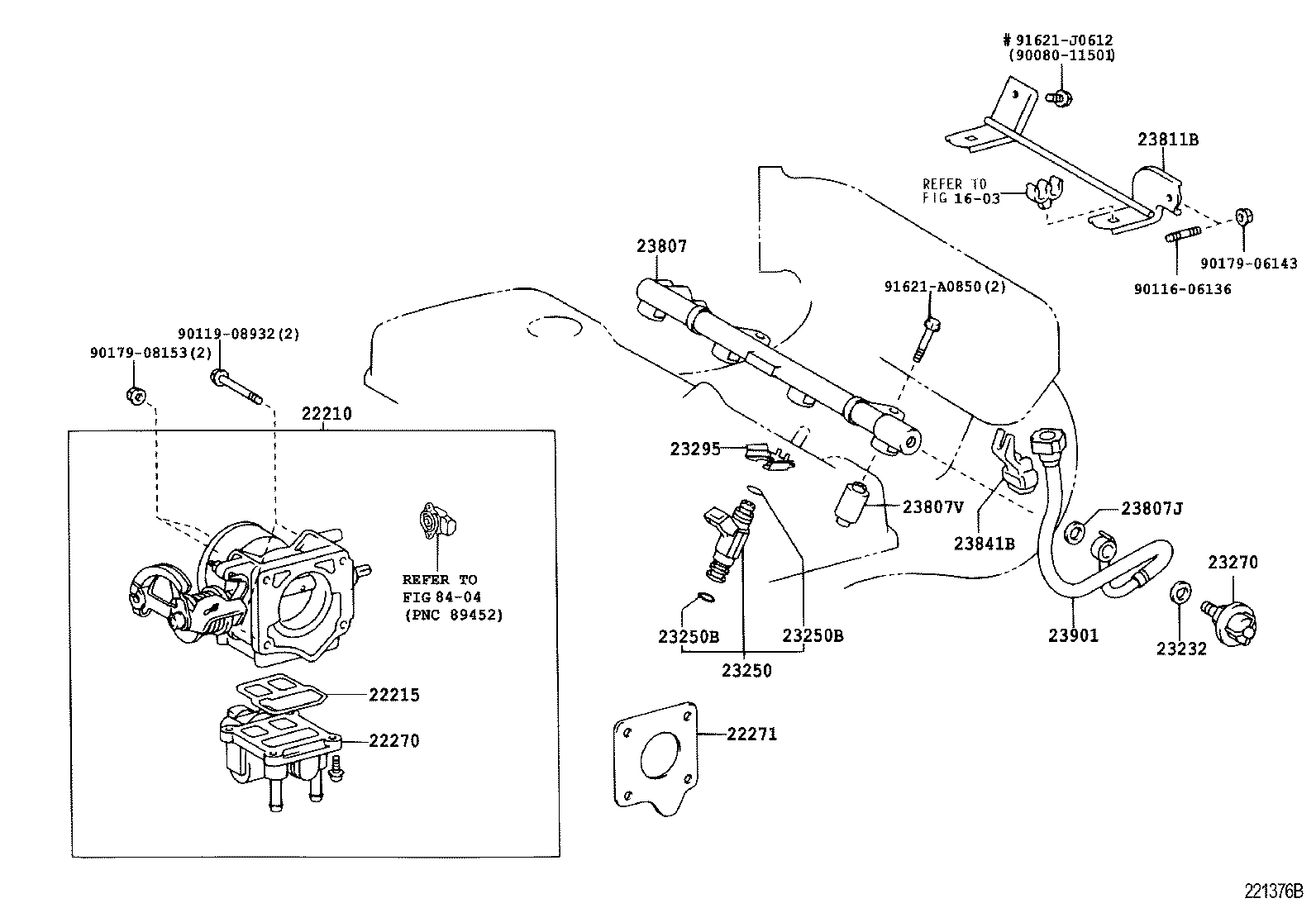

ILLUST NO. 1 OF 2(0210- )5AFE,8AFE

VIOS SOLUNA VIOS | FUEL INJECTION SYSTEM ** Refer Fig 22210 - BODY ASSY, THROTTLE 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23232 - GASKET(FOR FUEL PUMP HOSE) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23295 - HOLDER, INJECTOR, NO.1 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807J - GASKET, PIPE FUEL DELIVARY INLET 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23811B - PIPE, FUEL, NO.1 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23901 - TUBE SUB-ASSY, FUEL ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
