TOYOTA VIOS SOLUNA VIOS AXP42L-EEPHKC / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

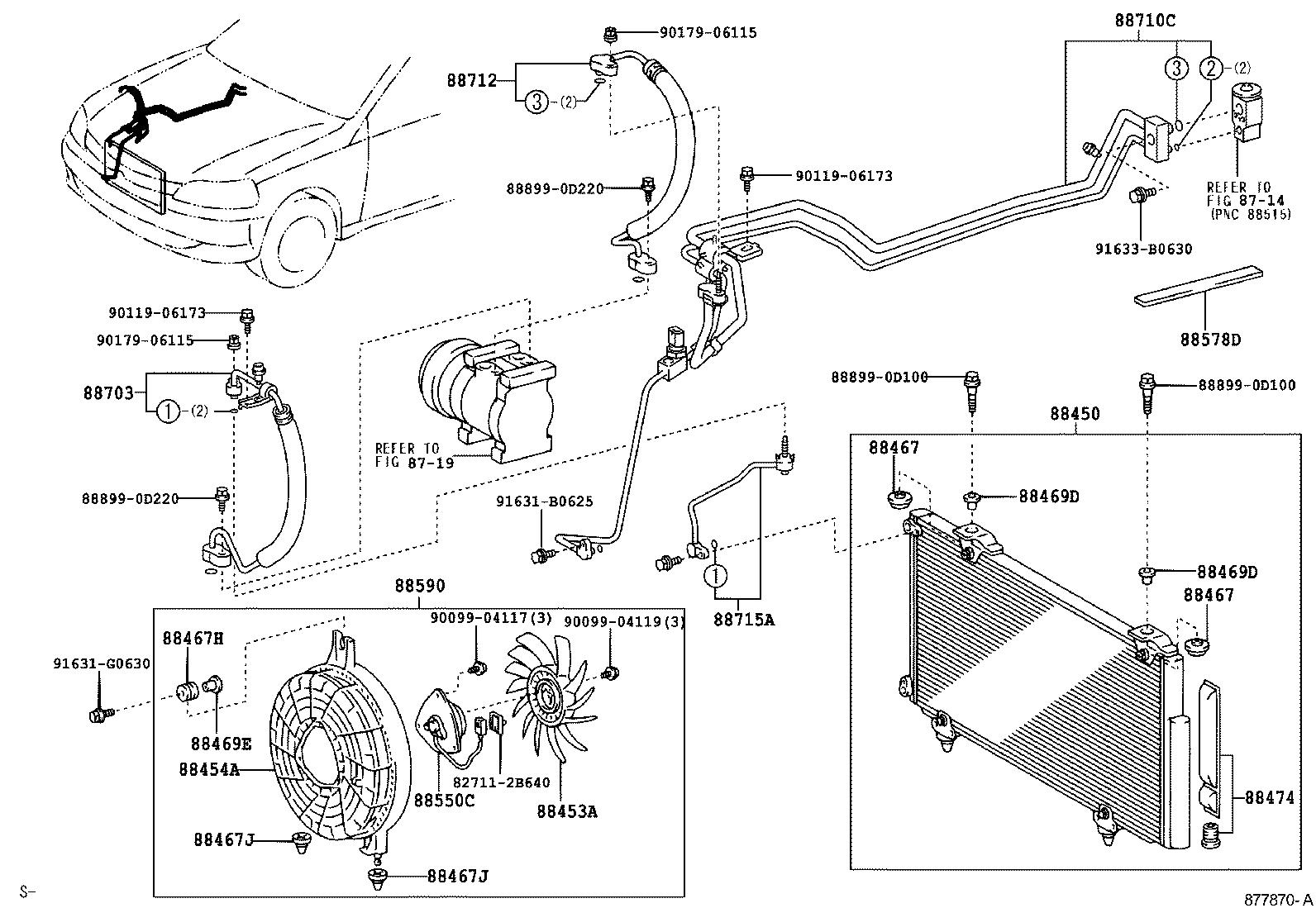

ILLUST NO. 1 OF 2(0511-0608)AXP4#

 VIOS SOLUNA VIOS |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part ** Refer Fig ** Refer Fig 88450 - CONDENSER ASSY, W/RECEIVER 88453A - FAN, COOLING 88454A - SHROUD, FAN 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467H - CUSHION, CONDENSER BRACKET, NO.1 88467J - CUSHION, CONDENSER BRACKET, NO.2 88467J - CUSHION, CONDENSER BRACKET, NO.2 88469D - COLLAR, CONDENSER BRACKET, NO.1 88469D - COLLAR, CONDENSER BRACKET, NO.1 88469E - COLLAR, CONDENSER BRACKET, NO.2 88474 - DRYER, COOLER 88550C - MOTOR ASSY, PRINTED 88578D - PACKING, COOLER PIPE, NO.1 88590 - BLOWER ASSY, W/SHROUD 88703 - HOSE SUB-ASSY, DISCHARGE 88710C - TUBE ASSY, AIRCONDITIONER 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
