TOYOTA COASTER CHINA BB54L-ZEMSW / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

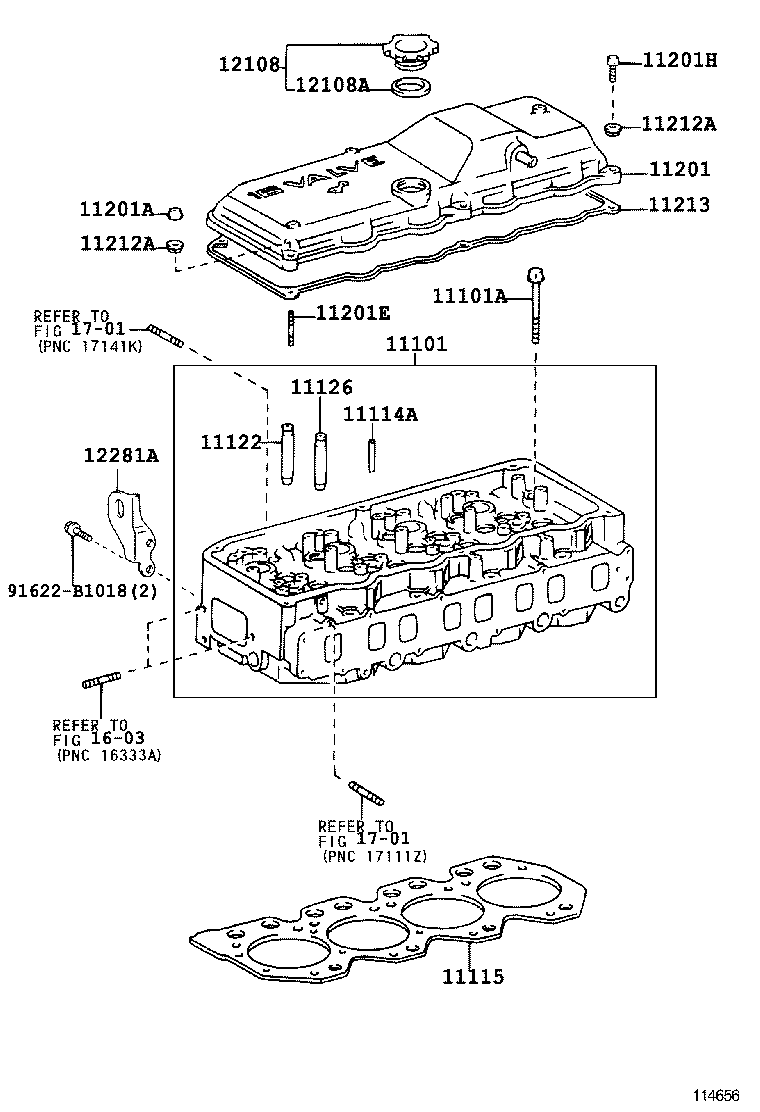

CYLINDER HEAD

(0310- )15BFT

 COASTER CHINA |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET) 11201H - BOLT(FOR CYLINDER HEAD COVER) 11212A - CUSHION, CYLINDER HEAD COVER 11212A - CUSHION, CYLINDER HEAD COVER 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12281A - HANGER, ENGINE, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part
