TOYOTA HIACE LH202R-REMDE / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

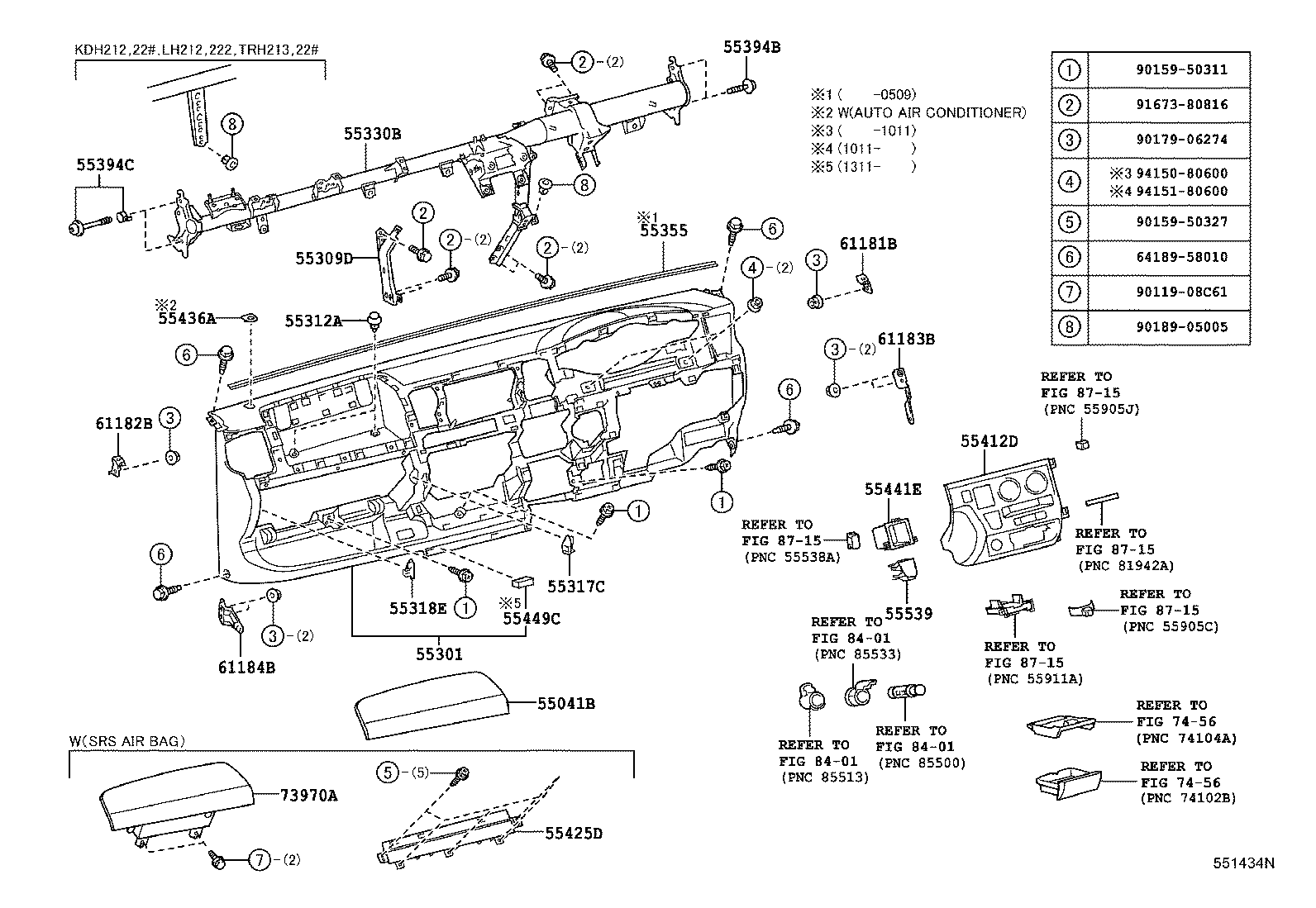

ILLUST NO. 1 OF 2(0501- )RHD

HIACE | INSTRUMENT PANEL GLOVE COMPARTMENT 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 55301 - PANEL SUB-ASSY, INSTRUMENT 55309D - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR 55312A - CLIP, INSTRUMENT PANEL 55317C - PATCH, INSTRUMENT SIDE, LOWER RH 55318E - PATCH, INSTRUMENT SIDE, LOWER LH 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55394B - BOLT, INSTRUMENT PANEL 55394C - BOLT, INSTRUMENT PANEL 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER 55425D - BASE, AIR BAG PASSENGER MOUNTING 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH 55441E - BOX, INSTRUMENT PANEL 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 55539 - COVER, SPARE SWITCH HOLE 61181B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 RH 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH 61183B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH 61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH ** Std Part 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
