TOYOTA LAND CRUISER 100 105 UZJ100L-GNMEKV / ELECTRICAL / ELECTRONIC FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ELECTRONIC FUEL INJECTION SYSTEM

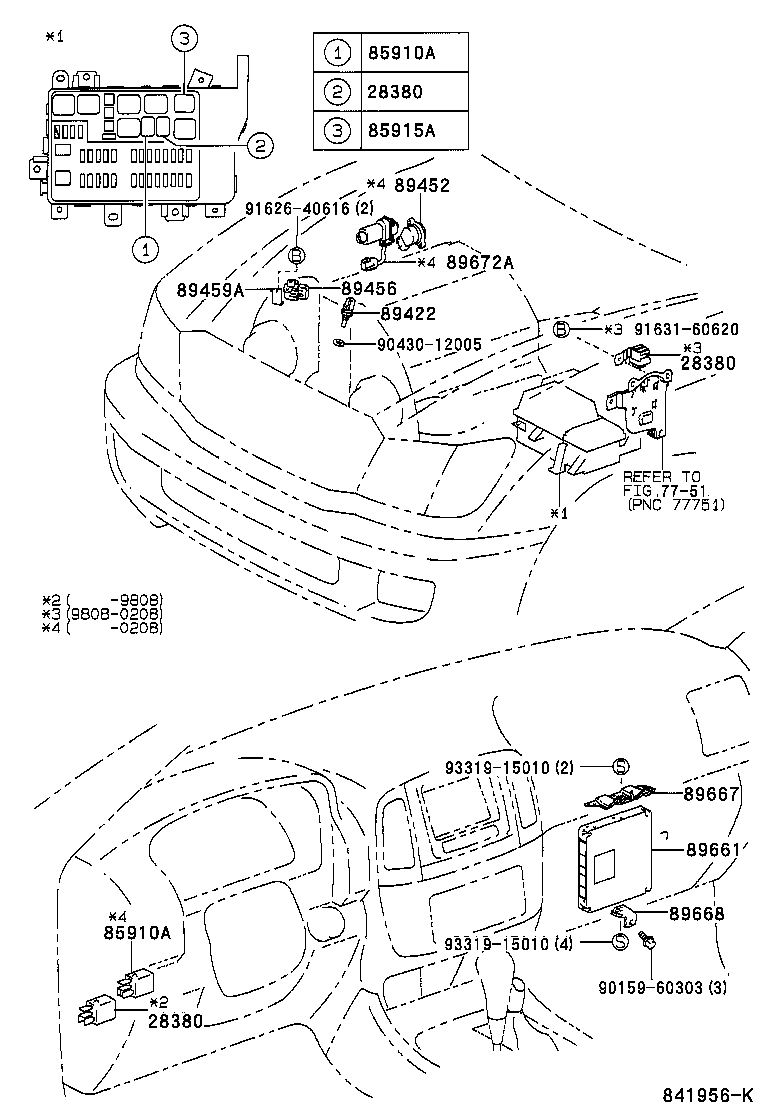

ENGINE & ROOM ILLUST NO. 1 OF 2(9801- )UZJ100..LHD

LAND CRUISER 100 105 | ELECTRONIC FUEL INJECTION SYSTEM 28380 - RELAY ASSY, FUEL PUMP 28380 - RELAY ASSY, FUEL PUMP 28380 - RELAY ASSY, FUEL PUMP ** Refer Fig 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) 85915A - RELAY, MAIN 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) 89456 - RESISTOR, VARIABLE 89459A - BRACKET, VARIABLE RESISTOR 89661 - COMPUTER, ENGINE CONTROL 89667 - BRACKET, ENGINE CONTROL COMPUTER 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 89672A - MOTOR, THROTTLE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
