TOYOTA LAND CRUISER 100 105 UZJ100L-GNMEKV / ELECTRICAL / HEATING AIR CONDITIONING HEATER UNIT BLOWER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING HEATER UNIT BLOWER

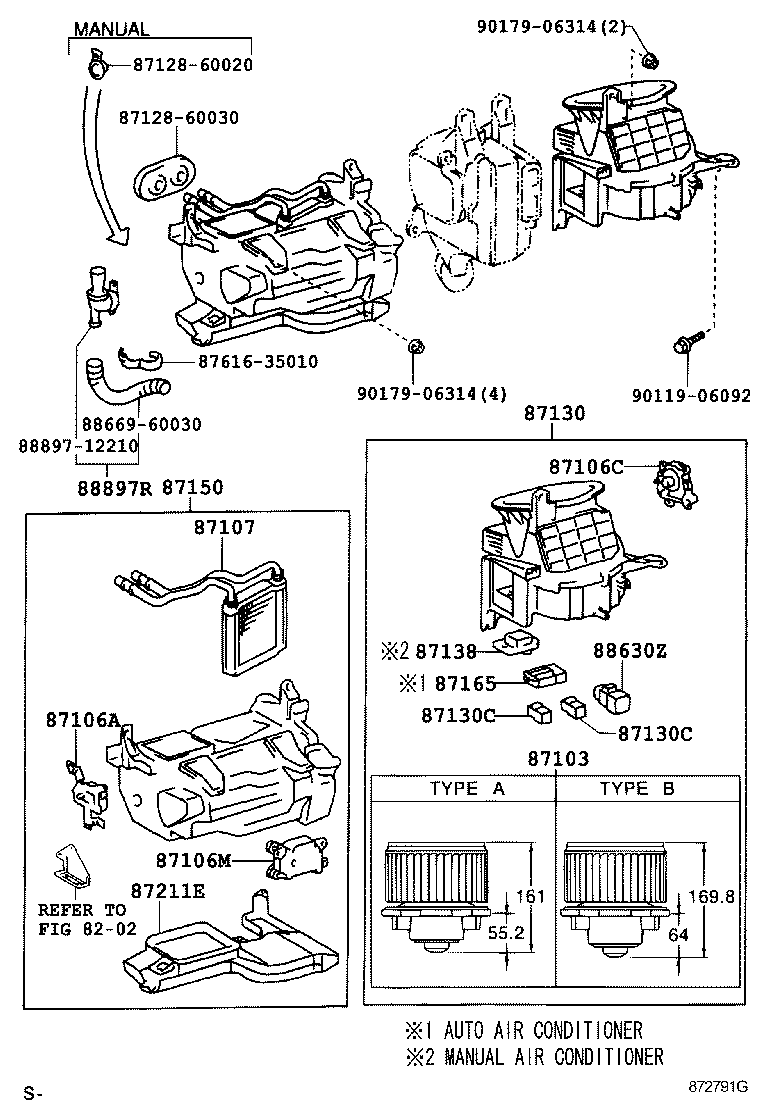

FRONT ILLUST NO. 1 OF 2(9801- )LHD

LAND CRUISER 100 105 | HEATING AIR CONDITIONING HEATER UNIT BLOWER ** Refer Fig 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN 87106A - SERVO SUB-ASSY, DAMPER 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) 87106M - SERVO SUB-ASSY, DAMPER, NO.2 87107 - UNIT SUB-ASSY, HEATER RADIATOR ** Std Part ** Std Part 87130 - BLOWER ASSY, HEATER, FRONT 87130C - RELAY, HEATER BLOWER MOTOR 87130C - RELAY, HEATER BLOWER MOTOR 87138 - RESISTOR, HEATER BLOWER 87150 - RADIATOR ASSY, HEATER 87165 - CONTROL, BLOWER MOTOR, NO.1 87211E - DUCT, AIR ** Std Part 88630Z - RELAY, BLOWER EXTRA HIGH ** Std Part ** Std Part 88897R - ASPIRATOR ** Std Part ** Std Part ** Std Part
