TOYOTA LAND CRUISER 200 GRJ200R-GMMNK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

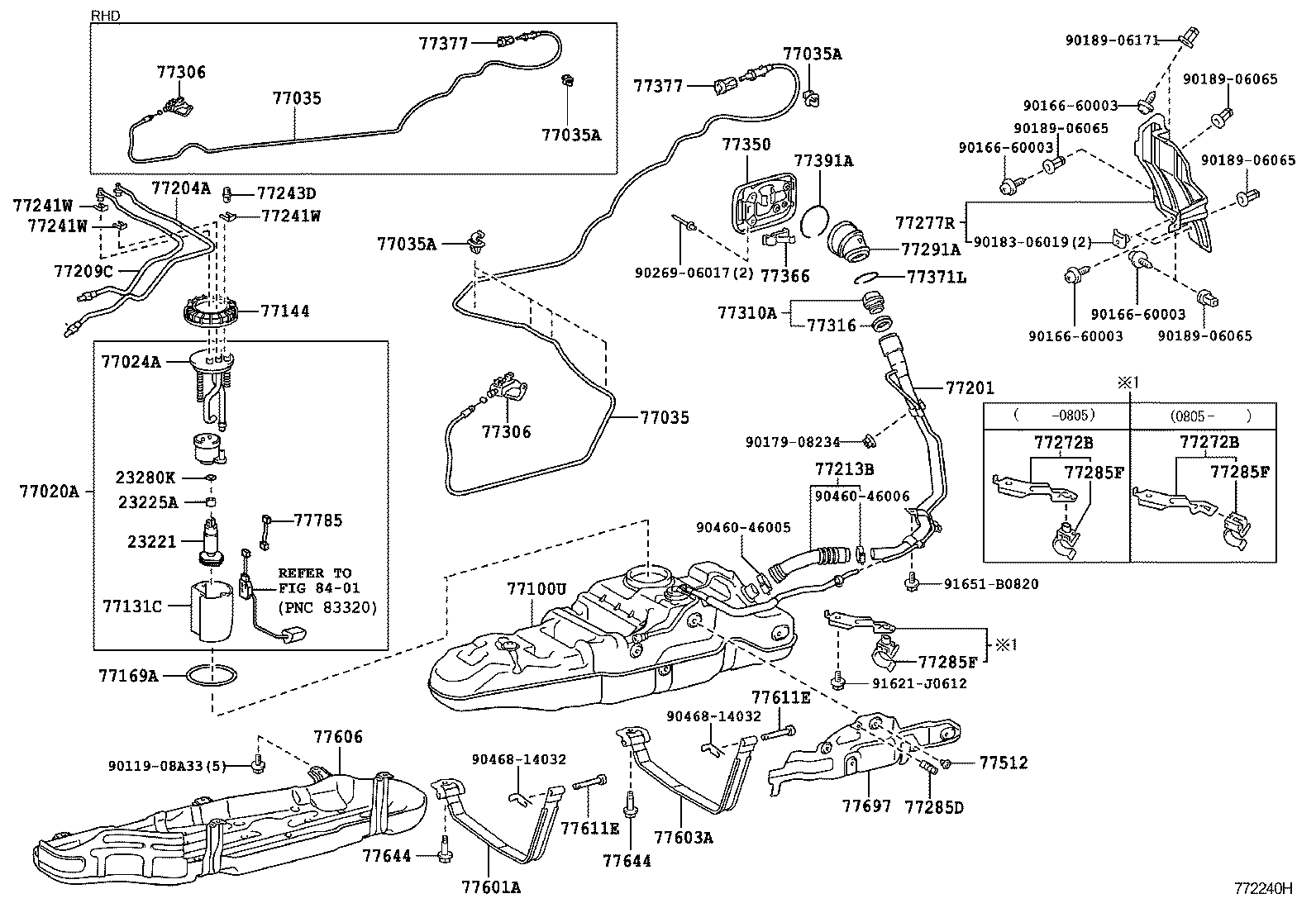

FUEL TANK,W/O(FUEL SUB TANK) ILLUST NO. 1 OF 2(0709-1201)GRJ200,UZJ200..G

 LAND CRUISER 200 |  FUEL TANK TUBE 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77100U - TANK SUB-ASSY, FUEL 77131C - SUB-TANK, FUEL, NO.1 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77204A - TUBE, FUEL TANK RETURN 77209C - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77243D - JOINT, FUEL TUBE, NO.1 77272B - SUPPORT, BREATHER TUBE, NO.1 77272B - SUPPORT, BREATHER TUBE, NO.1 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77285D - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77291A - SHIELD, FUEL TANK FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77371L - RING, FUEL TANK FILLER PIPE SHIELD 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77391A - RING, FUEL INLET BOX 77512 - BRACKET, FUEL TANK, REAR 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611E - PIN, FUEL TANK BAND 77611E - PIN, FUEL TANK BAND 77644 - BOLT, FUEL TANK 77644 - BOLT, FUEL TANK 77697 - INSULATOR, FUEL TANK HEAT, NO.1 77785 - HARNESS, FUEL PUMP ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
