TOYOTA LAND CRUISER 200 GRJ200R-GMMNK / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

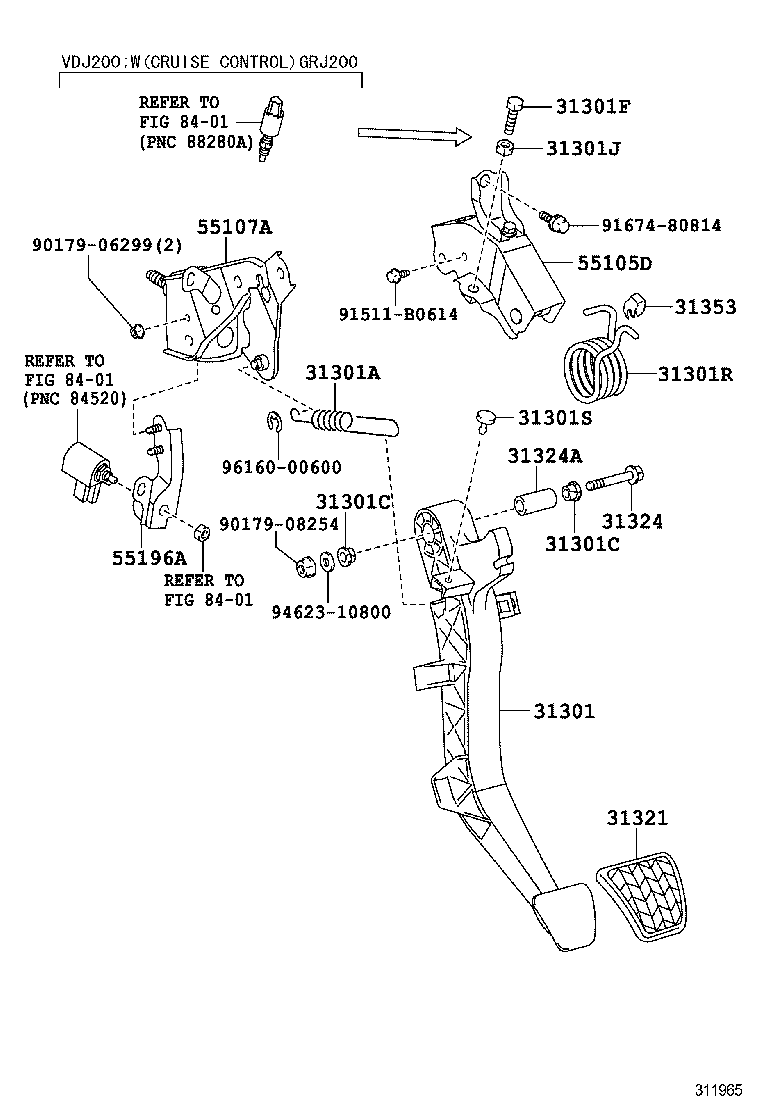

ILLUST NO. 1 OF 2(0709- )RHD..5F

LAND CRUISER 200 | CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301A - SPRING(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31301J - NUT(FOR CLUTCH PEDAL STOPPER) 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31353 - HOLDER, CLUTCH PEDAL SPRING 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL 55196A - BRACKET, CLUTCH START SWITCH MOUNTING ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
