TOYOTA LAND CRUISER 200 GRJ200R-GMMNK / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

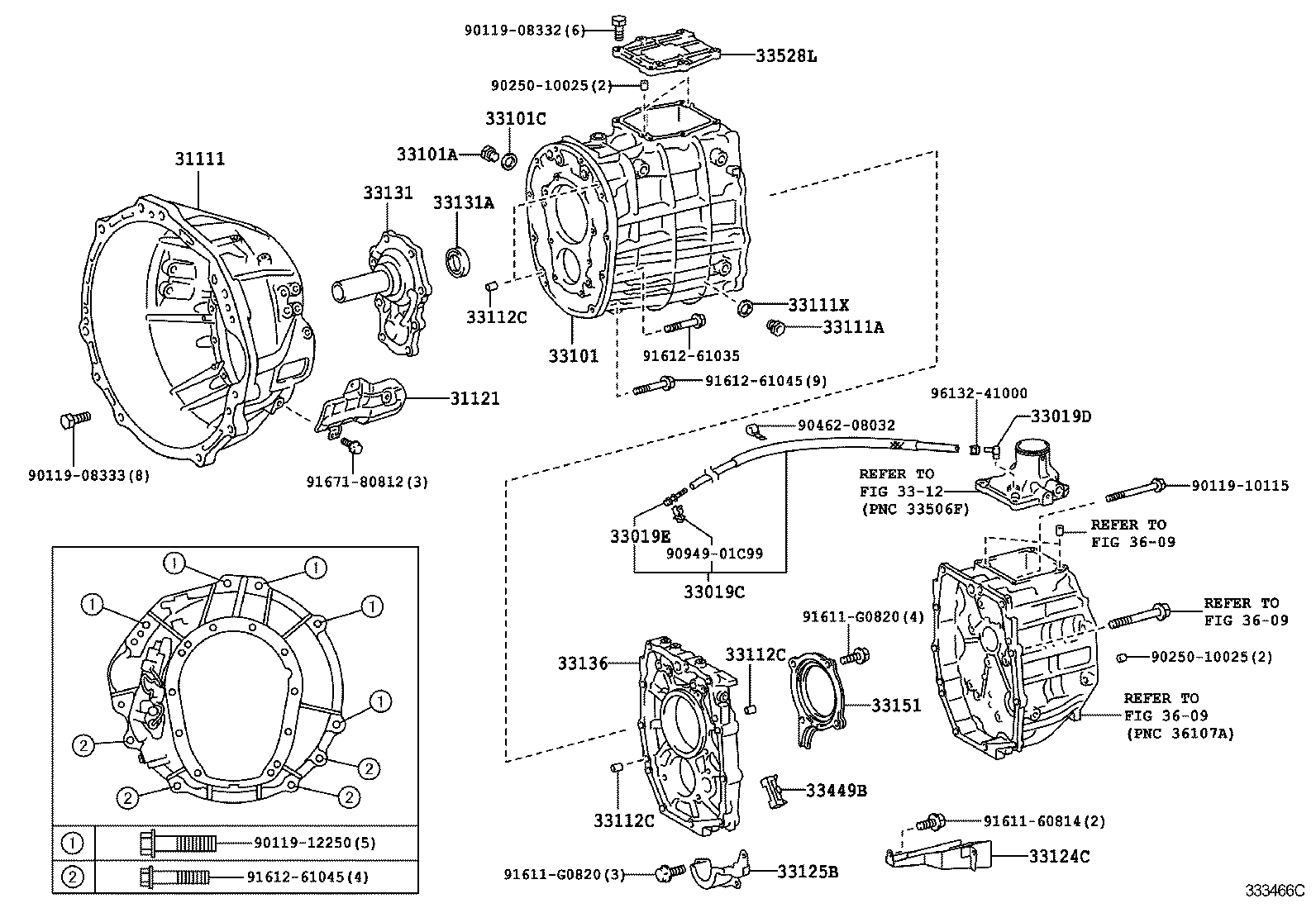

CLUTCH HOUSING TRANSMISSION CASE MTM

H150 (0709- )GRJ200..5F

LAND CRUISER 200 | CLUTCH HOUSING TRANSMISSION CASE MTM 31111 - HOUSING, CLUTCH 31121 - COVER, CLUTCH HOUSING, NO.1 33019C - BREATHER SUB-ASSY, TRANSMISSION 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) 33019E - PLUG SUB-ASSY, BREATHER(FOR TRANSMISSION) 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33111A - PLUG, MANUAL TRANSMISSION CASE 33111X - GASKET, TRANSMISSION CASE PLUG 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) 33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER) ** Refer Fig 33124C - PIPE, OIL RECEIVER, NO.1(MTM) 33125B - RECEIVER, MANUAL TRANSMISSION CASE 33131 - RETAINER, BEARING, FRONT(MTM) 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) 33136 - PLATE, TRANSMISSION INTERMEDIATE 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) 33449B - MAGNET, TRANSMISSION 33528L - COVER, CONTROL SHAFT ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
