TOYOTA LAND CRUISER 200 VDJ200L-GMMNZ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

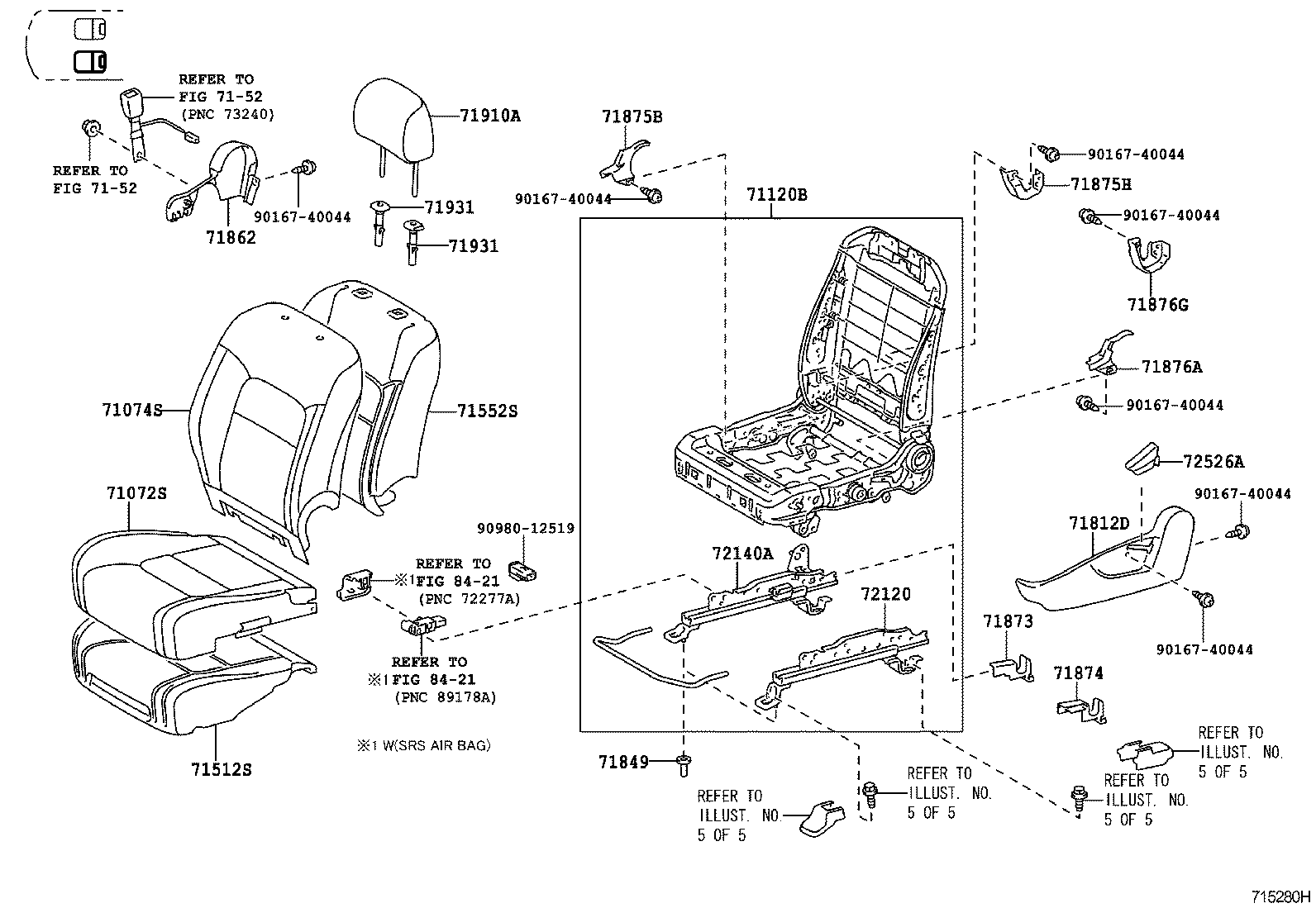

SEAT SEAT TRACK

LH(MANUAL),W/O(SRS SIDE AIR BAG) ILLUST NO. 1 OF 5(0709- )LHD

 LAND CRUISER 200 |  SEAT SEAT TRACK 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72120 - TRACK ASSY, FRONT SEAT, OUTER LH 72140A - TRACK ASSY, FRONT SEAT,INNER LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
