TOYOTA LAND CRUISER 70 FZJ76L-RKMRK / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

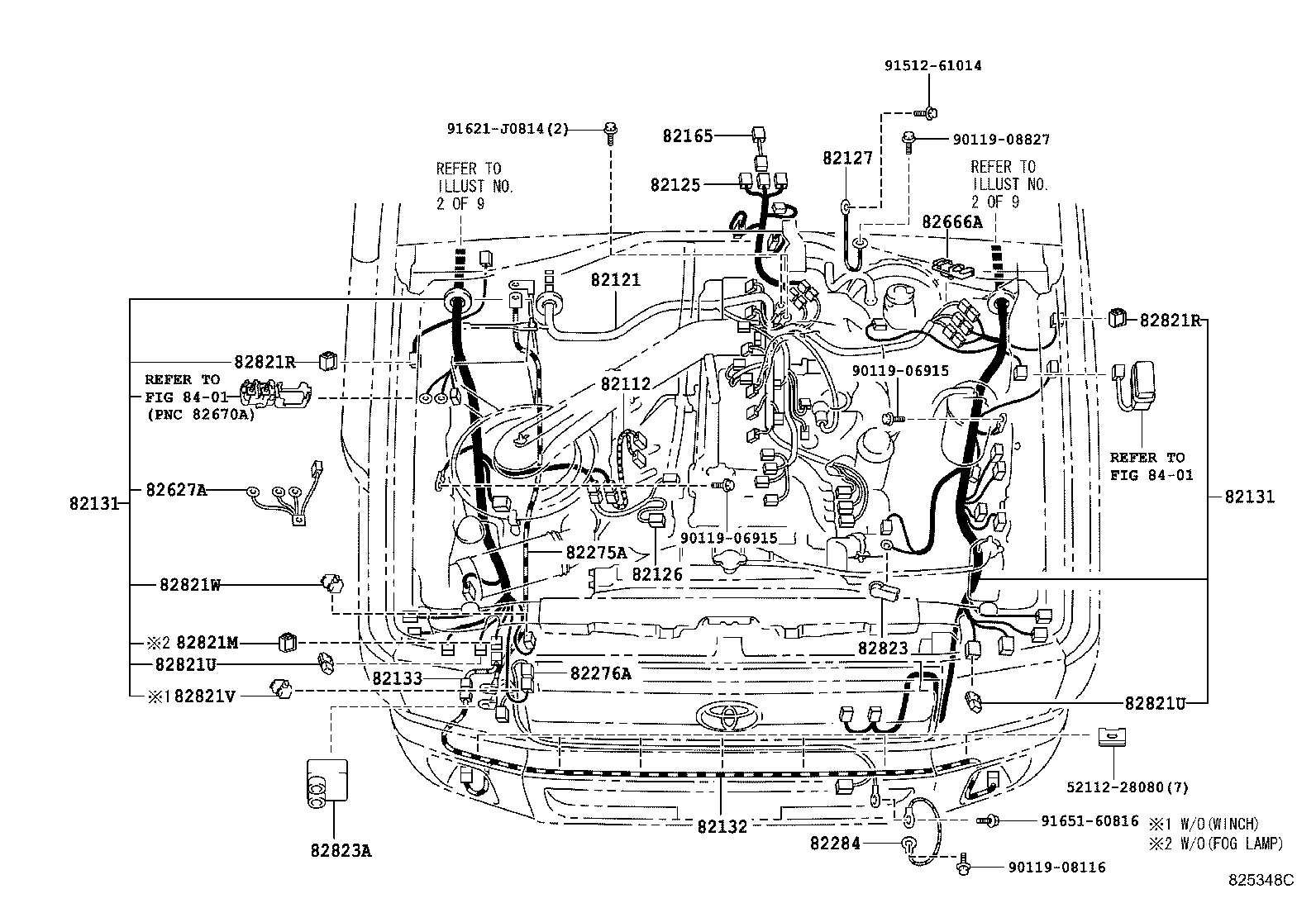

ENGINE & TRANSMISSION ILLUST NO. 1 OF 7(0701- )FZJ7#..LHD

 LAND CRUISER 70 |  WIRING CLAMP  ** Std Part 82112 - WIRE, ENGINE ROOM, NO.2 82121 - WIRE, ENGINE 82125 - WIRE, TRANSMISSION 82126 - WIRE, ENGINE 82127 - WIRE, DIFFERENTIAL 82131 - WIRE, COWL 82131 - WIRE, COWL 82132 - WIRE, COWL, NO.2 82133 - WIRE, COWL, NO.3 82165 - WIRE, FRAME, NO.2 82275A - CABLE, BATTERY TO MAGNET SWITCH 82276A - CABLE, MAGNET SWITCH TO WINCH 82284 - WIRE, EARTH 82627A - WIRE, FUSIBLE LINK 82666A - HOLDER, CONNECTOR NO.2 82821M - COVER, CONNECTOR 82821R - COVER, CONNECTOR 82821R - COVER, CONNECTOR 82821U - COVER, CONNECTOR 82821U - COVER, CONNECTOR 82821V - COVER, CONNECTOR 82821W - COVER, CONNECTOR 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
