TOYOTA LAND CRUISER 70 FZJ76L-RKMRK / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

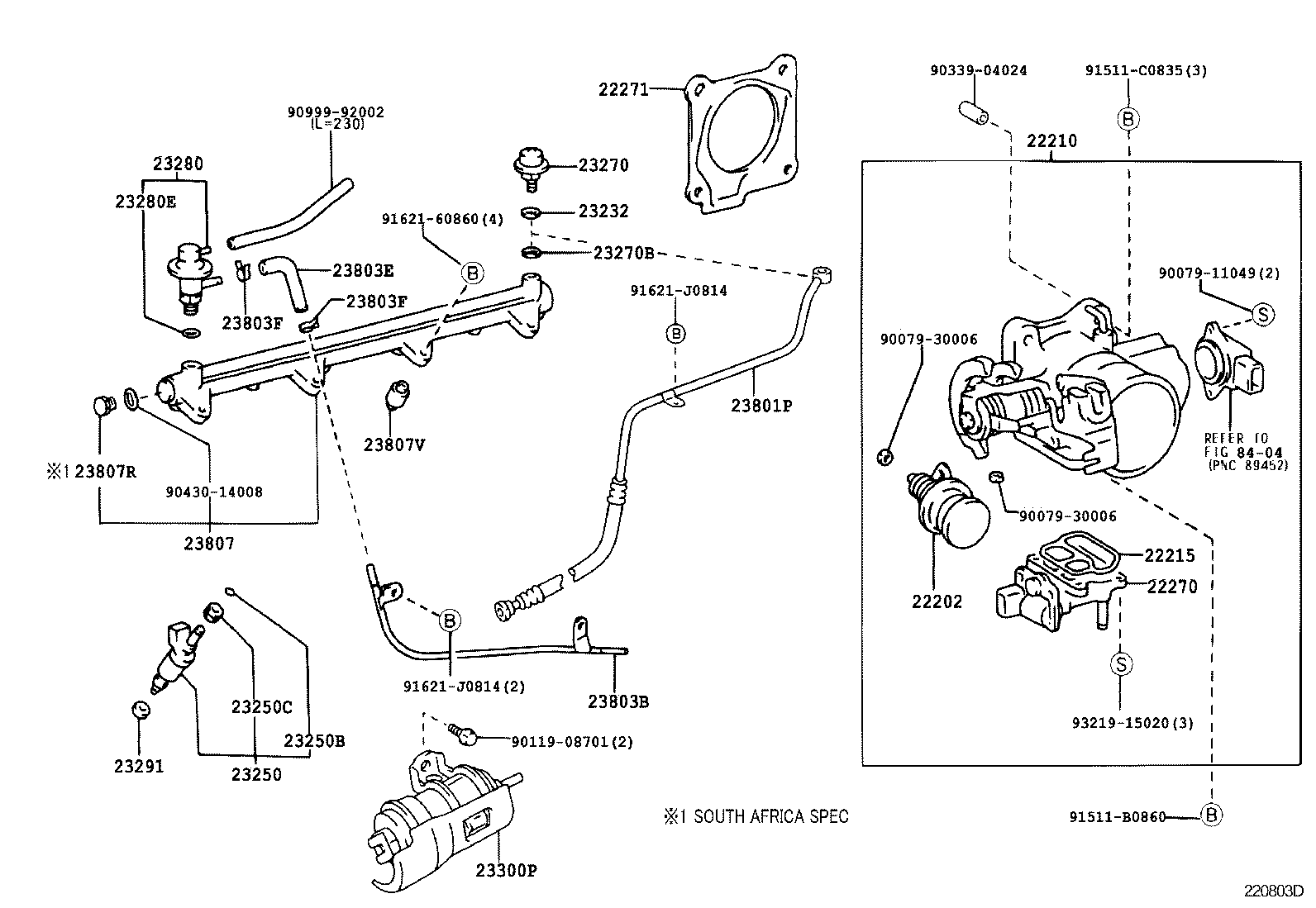

ILLUST NO. 1 OF 2(0701- )1FZFE

 LAND CRUISER 70 |  FUEL INJECTION SYSTEM 22202 - DASH POT SUB-ASSY 22210 - BODY ASSY, THROTTLE 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23232 - GASKET(FOR FUEL PUMP HOSE) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23803B - PIPE SUB-ASSY, FUEL, NO.3 23803E - HOSE, FUEL 23803F - CLIP 23803F - CLIP 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807R - PLUG, FUEL DELIVARY PIPE 23807V - SPACER, NO.1(FOR DELIVERY PIPE) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
