TOYOTA LAND CRUISER 70 HZJ76L-RKMRS / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

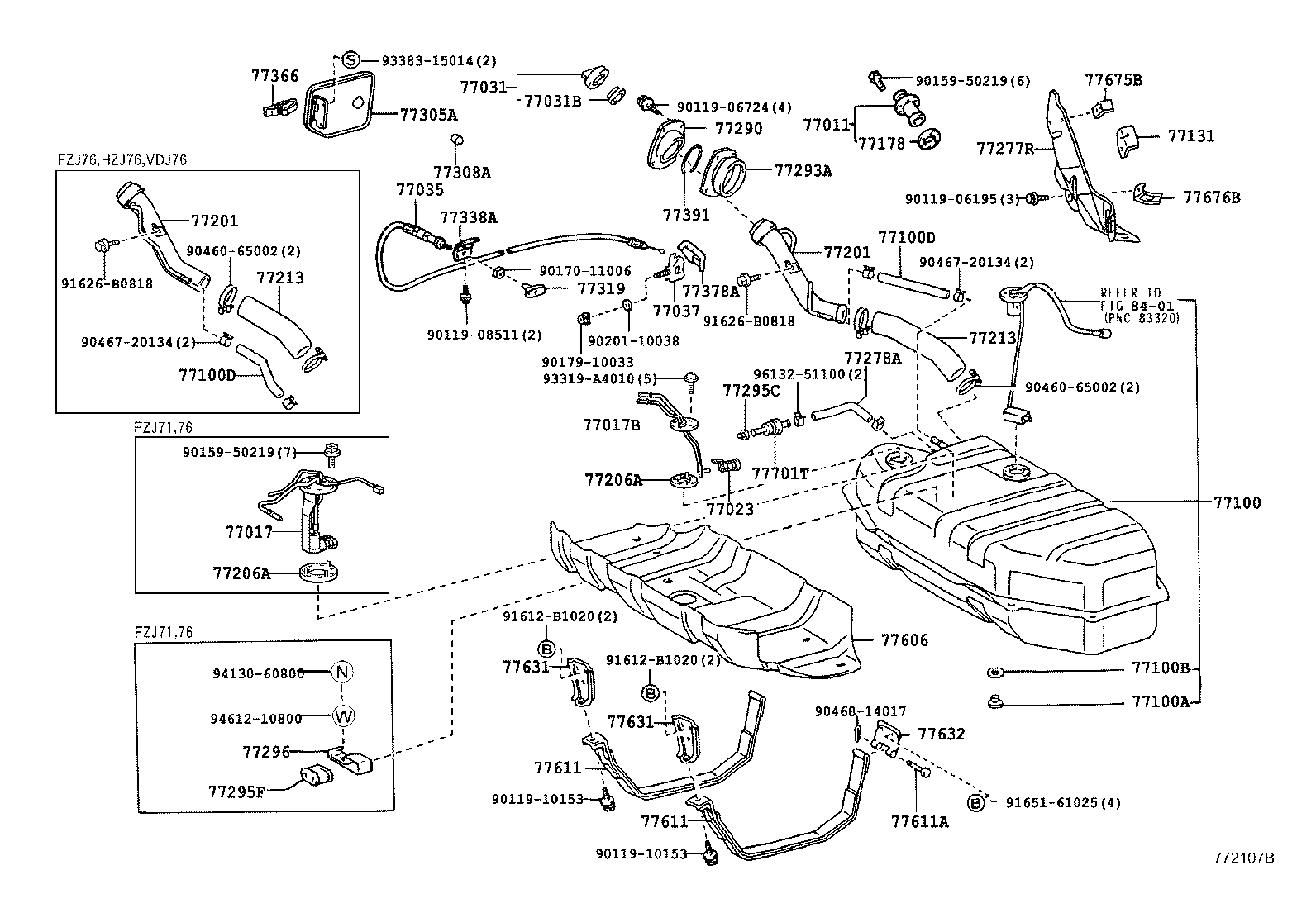

FUEL TANK ILLUST NO. 1 OF 5(0701-0907)FZJ71,76,HZJ71,76,VDJ76

LAND CRUISER 70 | FUEL TANK TUBE 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77213 - HOSE, FUEL TANK SUB INLET 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77295C - GROMMET, FUEL TUBE 77295F - GROMMET, FUEL HOSE 77296 - PLATE, FUEL TUBE GROMMET SUPPORT 77305A - LID SUB-ASSY, FUEL FILLER OPENING 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77319 - KNOB, FUEL TANK CAP 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77378A - COVER, FUEL FILLER OPENING LID LOCK 77391 - RING, FUEL INLET BOX 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611 - BAND, FUEL TANK 77611 - BAND, FUEL TANK 77611A - PIN (FOR FUEL TANK BAND) 77631 - BRACKET, FUEL TANK, NO.1 77631 - BRACKET, FUEL TANK, NO.1 77632 - BRACKET, FUEL TANK, NO.2 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
