TOYOTA LAND CRUISER PRADO TRJ120L-GKPEK / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

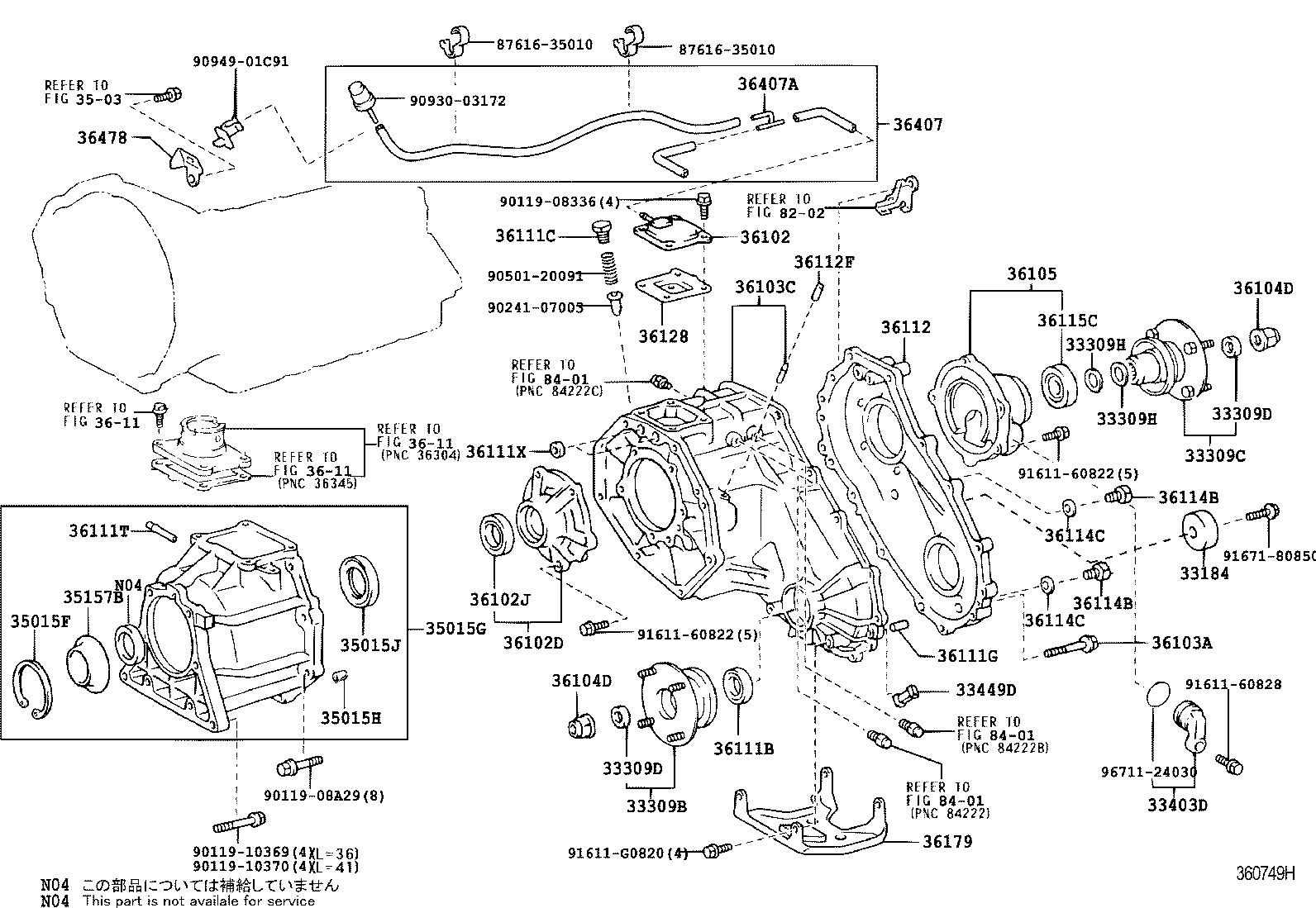

TRANSFER CASE EXTENSION HOUSING

(0209- )KZJ120,RZJ12#,TRJ12#..4FC

LAND CRUISER PRADO | TRANSFER CASE EXTENSION HOUSING 33184 - WEIGHT, DYNAMIC DAMPER 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 33309H - WASHER, TRANSFER OUTPUT SHAFT 33309H - WASHER, TRANSFER OUTPUT SHAFT 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE 33449D - MAGNET (FOR TRANSFER CASE) 35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER) 35015G - ADAPTER, TRANSFER, REAR 35015H - PIN, RING(FOR TRANSFER CASE) 35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) ** Refer Fig 35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL 36102 - COVER SUB-ASSY, TRANSFER CASE 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) 36103A - BOLT (FOR TRANSFER CASE) 36103C - CASE, TRANSFER, FRONT 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT ** Refer Fig ** Refer Fig ** Refer Fig 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111C - PLUG (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111T - TUBE (FOR TRANSFER CASE) 36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2 36112 - CASE, TRANSFER, REAR 36112F - CAP, TRANSFER, REAR CASE 36114B - PLUG, NO.1 (FOR TRANSFER CASE) 36114B - PLUG, NO.1 (FOR TRANSFER CASE) 36114C - GASKET, NO.1 (FOR TRANSFER CASE) 36114C - GASKET, NO.1 (FOR TRANSFER CASE) 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) 36128 - DEFLECTOR, BREATHER OIL 36179 - PROTECTOR, TRANSFER CASE LOWER 36407 - HOSE SUB-ASSY, TRANSFER BREATHER 36407A - WAY, 3(FOR TRANSFER BREATHER HOSE) 36478 - BRACKET, TRANSFER BREATHER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
