TOYOTA RAV4 GSA33R-ANAGKQ / BODY / SUSPENSION CROSSMEMBER UNDER COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

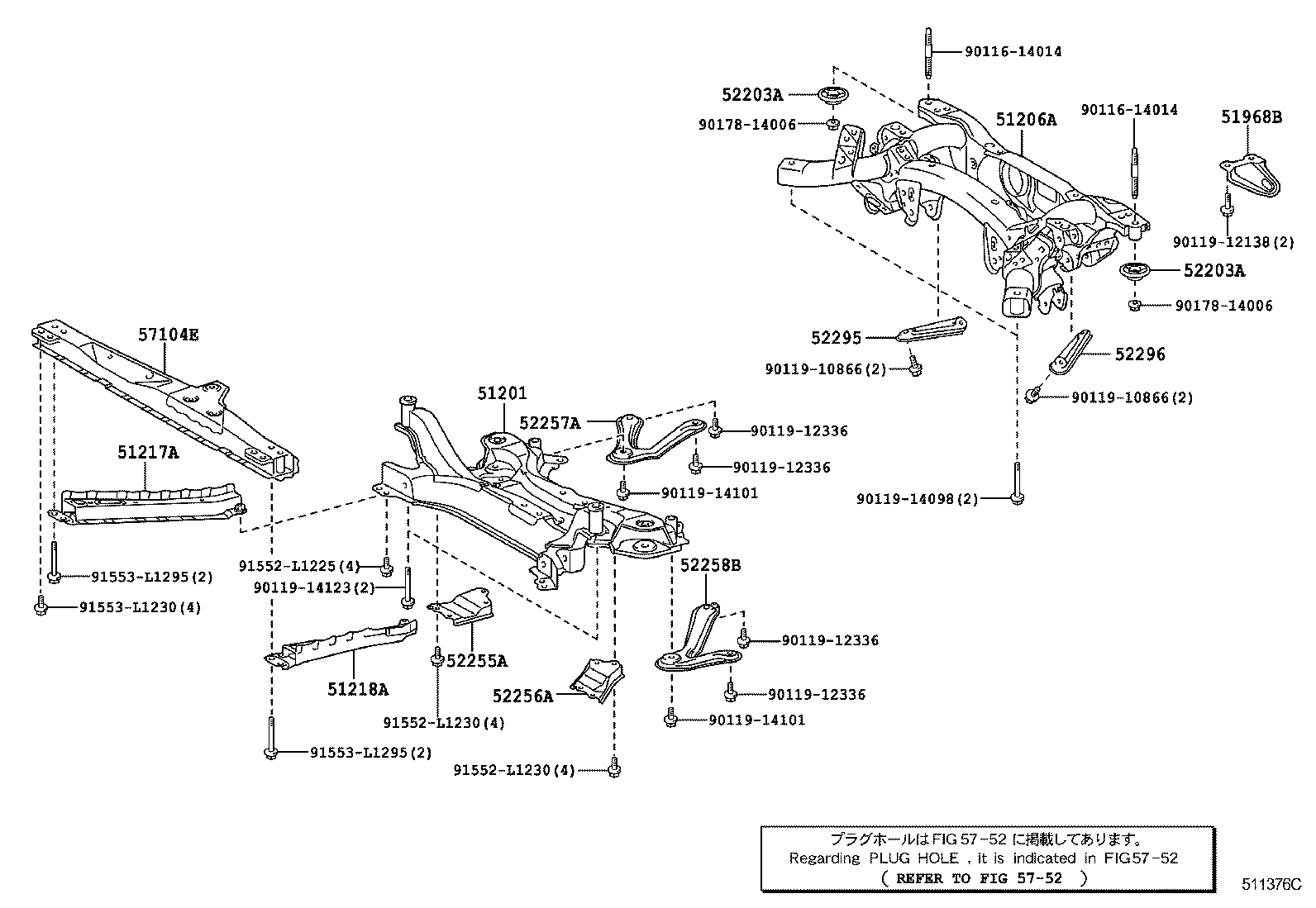

SUSPENSION CROSSMEMBER UNDER COVER

ILLUST NO. 1 OF 2(0511- )

 RAV4 |  SUSPENSION CROSSMEMBER UNDER COVER 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION 51206A - MEMBER SUB-ASSY, REAR SUSPENSION 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH 51968B - HOOK, TRANSPORT, REAR LH 52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER 52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER 52255A - BRACE, FRONT SUSPENSION MEMBER, FRONT RH 52256A - BRACE, FRONT SUSPENSION MEMBER, FRONT LH 52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH 52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH 52295 - BRACE, REAR SUSPENSION MEMBER, RH 52296 - BRACE, REAR SUSPENSION MEMBER, LH 57104E - MEMBER SUB-ASSY, FRONT CROSS ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
