TOYOTA VIOS NCP93R-BEPVKT / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

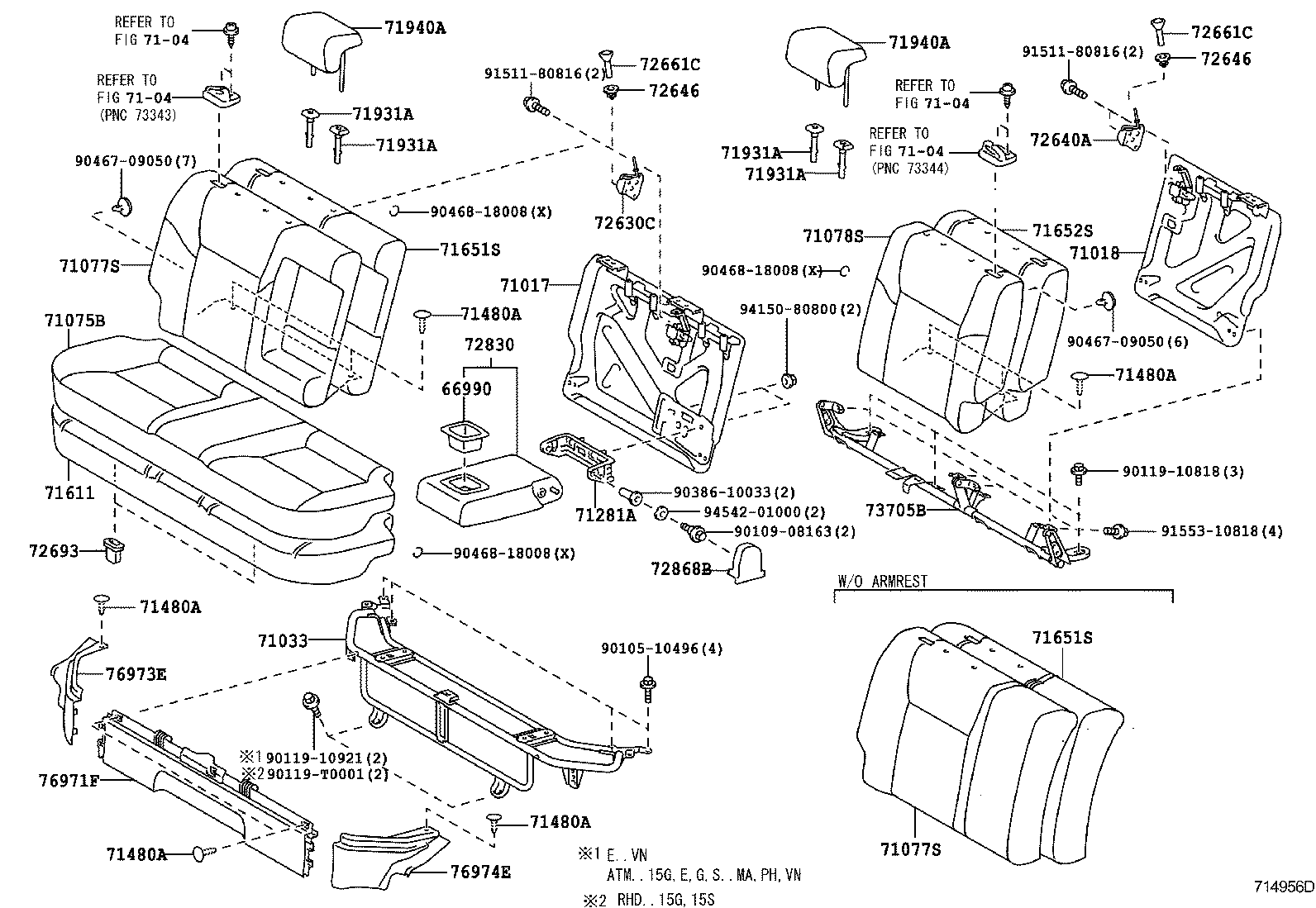

REAR SEAT SEAT TRACK

6:4 FOLD TYPE REAR SEAT (0702- )ATM..15G,15S,E,G,S ; (0702- )MTM..

VIOS | REAR SEAT SEAT TRACK 66990 - HOLDER ASSY, CUP 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71033 - LEG SUB-ASSY, REAR SEAT CUSHION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71281A - HINGE, REAR SEAT CENTER ARMREST 71480A - CLIP (FOR REAR SEAT BACK) 71480A - CLIP (FOR REAR SEAT BACK) 71480A - CLIP (FOR REAR SEAT BACK) 71480A - CLIP (FOR REAR SEAT BACK) 71480A - CLIP (FOR REAR SEAT BACK) 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT 72630C - LOCK ASSY, REAR SEAT BACK, RH 72640A - LOCK ASSY, REAR SEAT BACK, LH 72646 - GROMMET, REAR SEAT BACK STOP BUTTON 72646 - GROMMET, REAR SEAT BACK STOP BUTTON 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72693 - HOOK, REAR SEAT CUSHION LOCK 72830 - ARMREST ASSY, REAR SEAT, CENTER 72868B - COVER, CENTER ARMREST HINGE 73705B - BRACKET SUB-ASSY, CROSS ANCHOR 76971F - COVER, REAR UNDER 76973E - COVER, REAR UNDER SIDE, RH 76974E - COVER, REAR UNDER SIDE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
