TOYOTA CAMRY HYBRID ASIA ACV41L-JEPNKR / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

(0605- )ACV4#..LHD

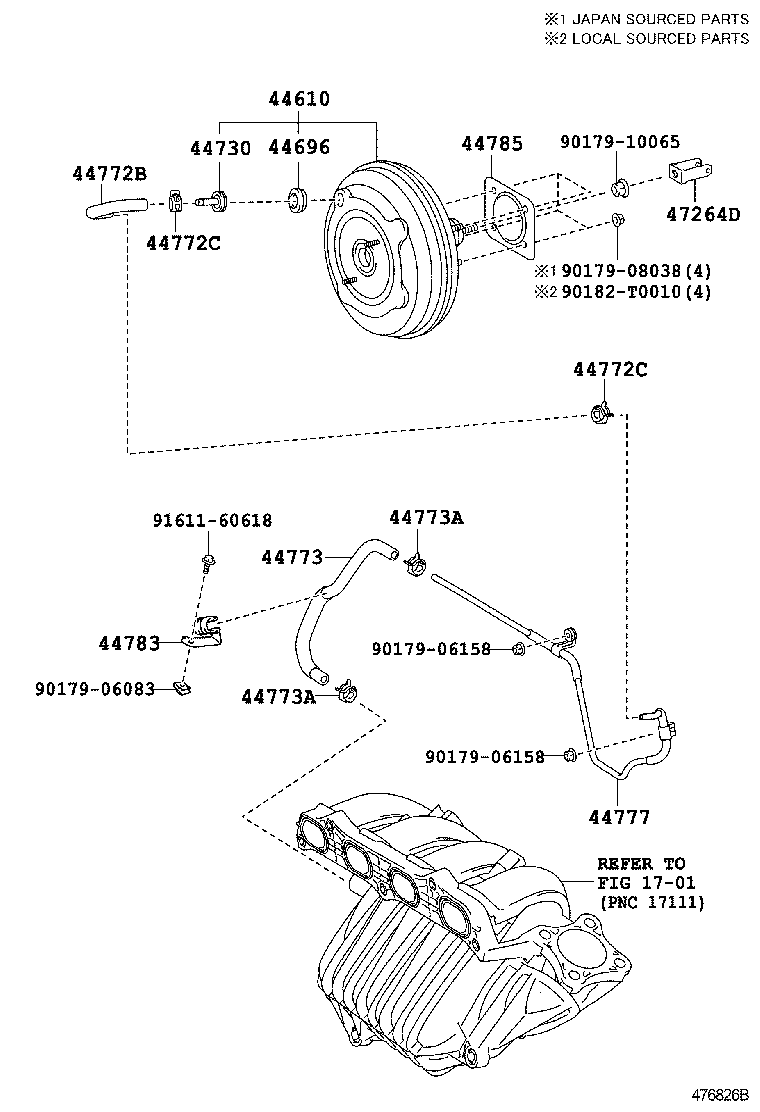

CAMRY HYBRID ASIA | BRAKE BOOSTER VACUUM TUBE ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44696 - GROMMET, CHECK VALVE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) 44773 - HOSE, VACUUM, NO.2 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) 44777 - CONNECTOR, VACUUM HOSE, NO.1 44783 - CLAMP, VACUUM HOSE 44785 - GASKET, BRAKE BOOSTER 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
