TOYOTA CAMRY HYBRID ASIA ACV41L-JEPNKR / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

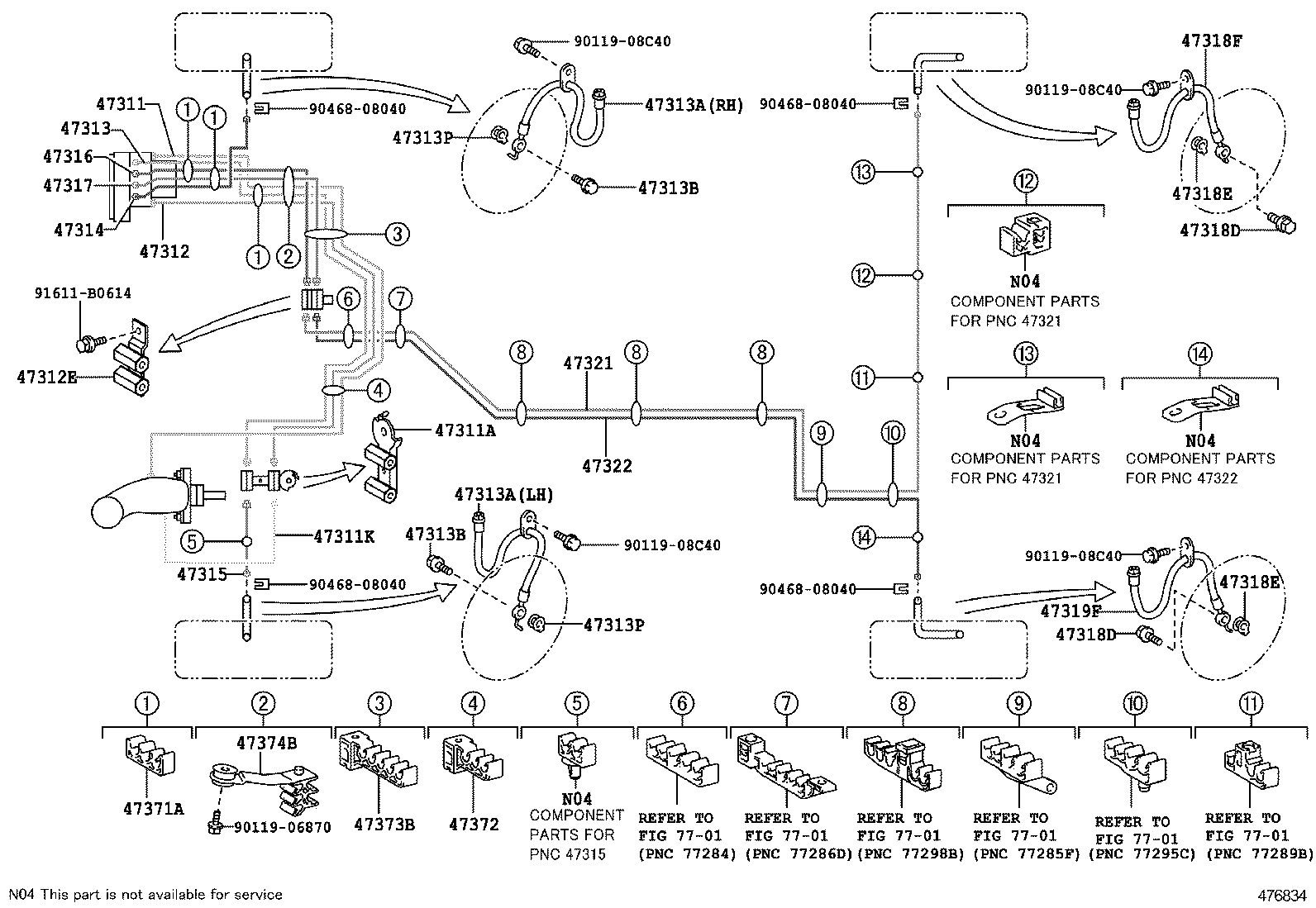

ILLUST NO. 1 OF 2(0605- )24G..PHL ; (0605- )LHD..20E,24E,24

CAMRY HYBRID ASIA | BRAKE TUBE CLAMP 47311 - TUBE, FRONT BRAKE, NO.1 47311A - WAY(FOR FRONT BRAKE TUBE) 47311K - TUBE, BRAKE MASTER CYLINDER TO WAY 47312 - TUBE, FRONT BRAKE, NO.2 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47315 - TUBE, FRONT BRAKE, NO.5 47316 - TUBE, FRONT BRAKE, NO.6 47317 - TUBE, FRONT BRAKE, NO.7 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47322 - TUBE, REAR BRAKE, NO.2 47371A - CLAMP, BRAKE TUBE, NO.1 47372 - CLAMP, BRAKE TUBE, NO.2 47373B - CLAMP, BRAKE TUBE, NO.3 47374B - CLAMP, BRAKE TUBE, NO.4 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
