TOYOTA DYNA WU342R-TKMRBD3 / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

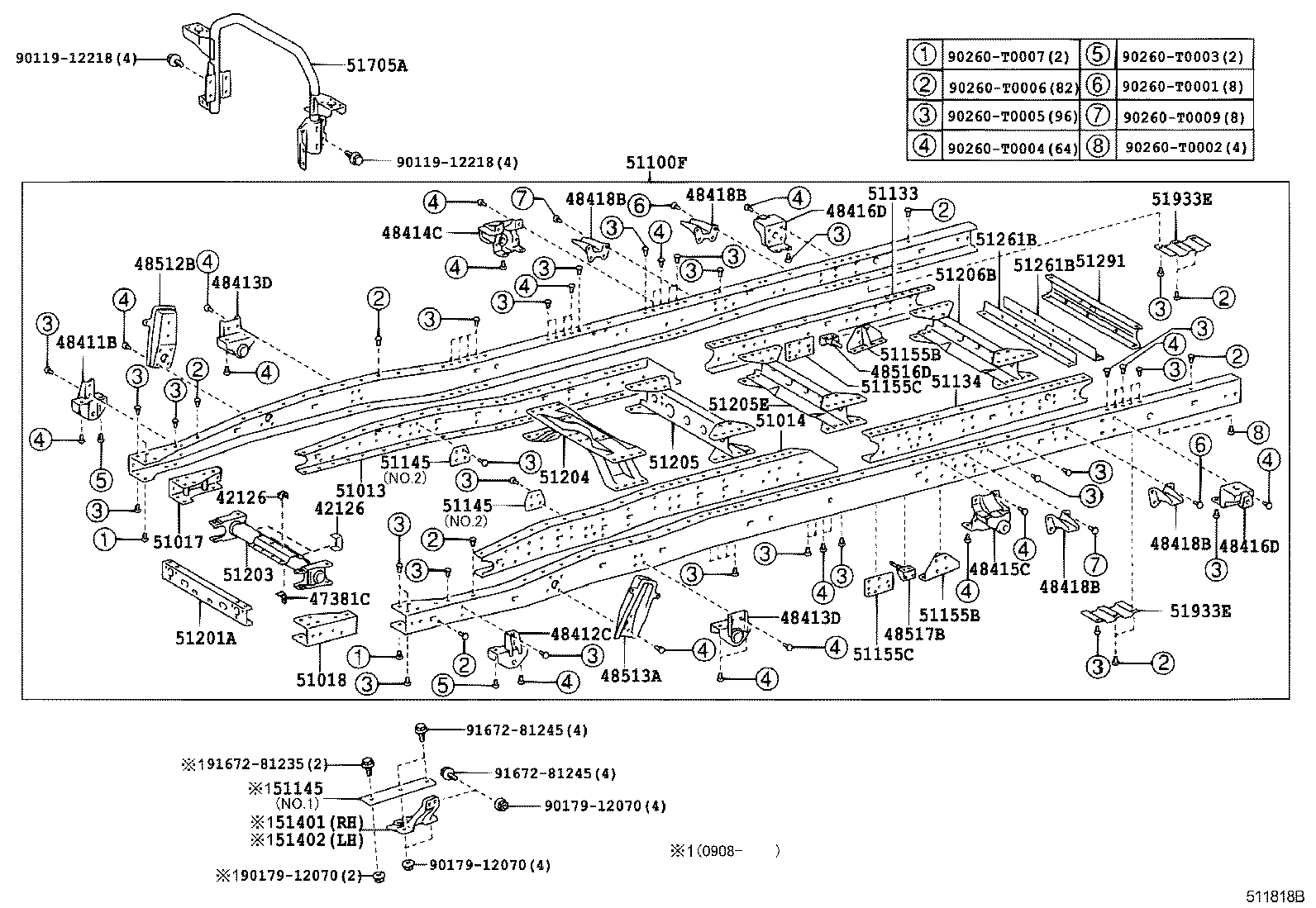

ILLUST NO. 1 OF 2(0712- )WU342..DCRTH,DCRTJ..IDN

DYNA | FRAME 42126 - ATTACHMENT, BRAKE 3 WAY 42126 - ATTACHMENT, BRAKE 3 WAY 47381C - BRACKET, TUBE CLAMP 48411B - BRACKET, SPRING, NO.1 RH 48412C - BRACKET, SPRING, NO.1 LH 48413D - BRACKET, SPRING, NO.2 48413D - BRACKET, SPRING, NO.2 48414C - BRACKET, SPRING, NO.3 RH 48415C - BRACKET, SPRING, NO.3 LH 48416D - BRACKET, SPRING, NO.4 48416D - BRACKET, SPRING, NO.4 48418B - BRACKET, SPRING, NO.6 48418B - BRACKET, SPRING, NO.6 48418B - BRACKET, SPRING, NO.6 48418B - BRACKET, SPRING, NO.6 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR RH 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH 51100F - FRAME SUB-ASSY 51133 - CHANNEL, SIDE RAIL, INNER REAR RH 51134 - CHANNEL, SIDE RAIL, INNER REAR LH 51145 - STIFFENER, FRAME SIDE RAIL 51145 - STIFFENER, FRAME SIDE RAIL 51145 - STIFFENER, FRAME SIDE RAIL 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51205E - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 51261B - MEMBER, SPARE WHEEL SET 51261B - MEMBER, SPARE WHEEL SET 51291 - CROSSMEMBER, FRAME, REAR 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 51933E - STOPPER, SPARE WHEEL, NO.1 51933E - STOPPER, SPARE WHEEL, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
