TOYOTA DYNA XZU430R-TKFTSN3 / POWERTRAIN-CHASSIS / POWER TAKE OFF CASE GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

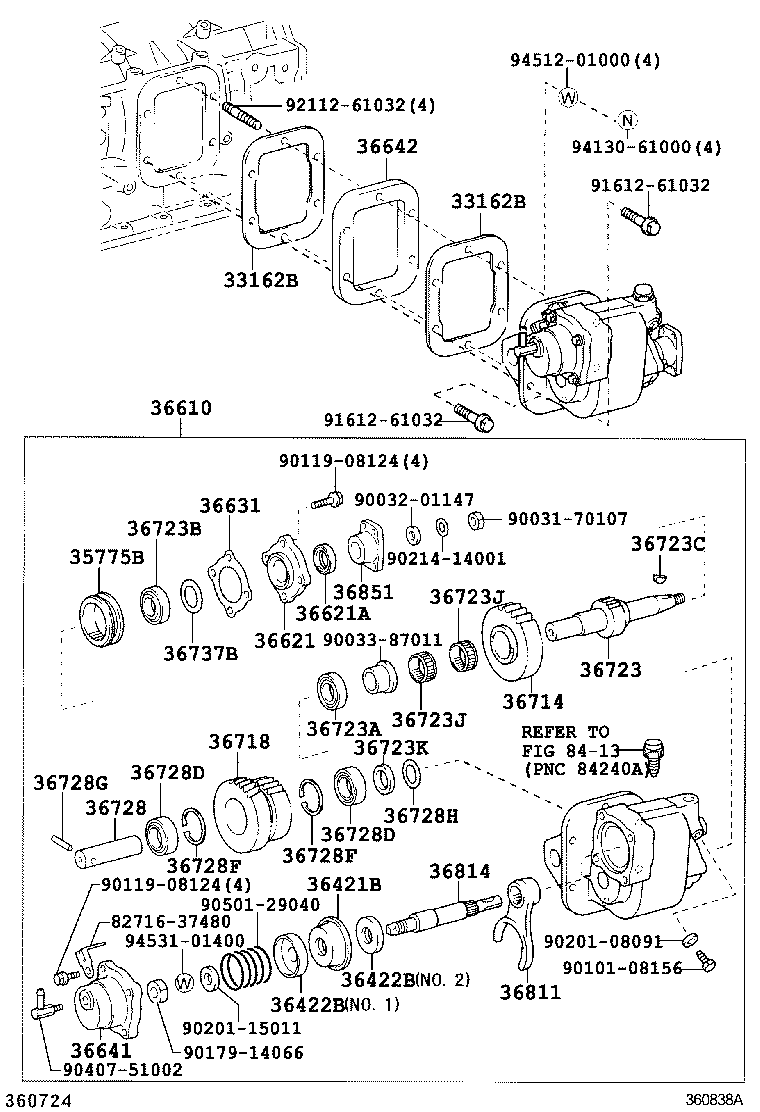

POWER TAKE OFF CASE GEAR

VACUUM TYPE 25KG ILLUST NO. 1 OF 2(0304- )XZU420,430

 DYNA |  POWER TAKE OFF CASE GEAR 33162B - GASKET, POWER TAKE-OFF COVER 33162B - GASKET, POWER TAKE-OFF COVER 35775B - SLEEVE, OUTPUT SHAFT 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) 36610 - POWER TAKE-OFF ASSY 36621 - RETAINER, POWER TAKE-OFF BEARING 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT 36642 - SPACER, POWER TAKE-OFF COVER 36714 - GEAR, POWER TAKE-OFF OUTPUT 36718 - GEAR, POWER TAKE-OFF IDLER 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 36723A - BEARING (FOR OUTPUT SHAFT FRONT) 36723B - BEARING (FOR OUTPUT SHAFT REAR) 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) 36728 - SHAFT, POWER TAKE-OFF IDLER 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 36851 - RETAINER, POWER TAKE-OFF JOINT  ** Std Part ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
