TOYOTA HIACE KDH200L-RBMDY / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

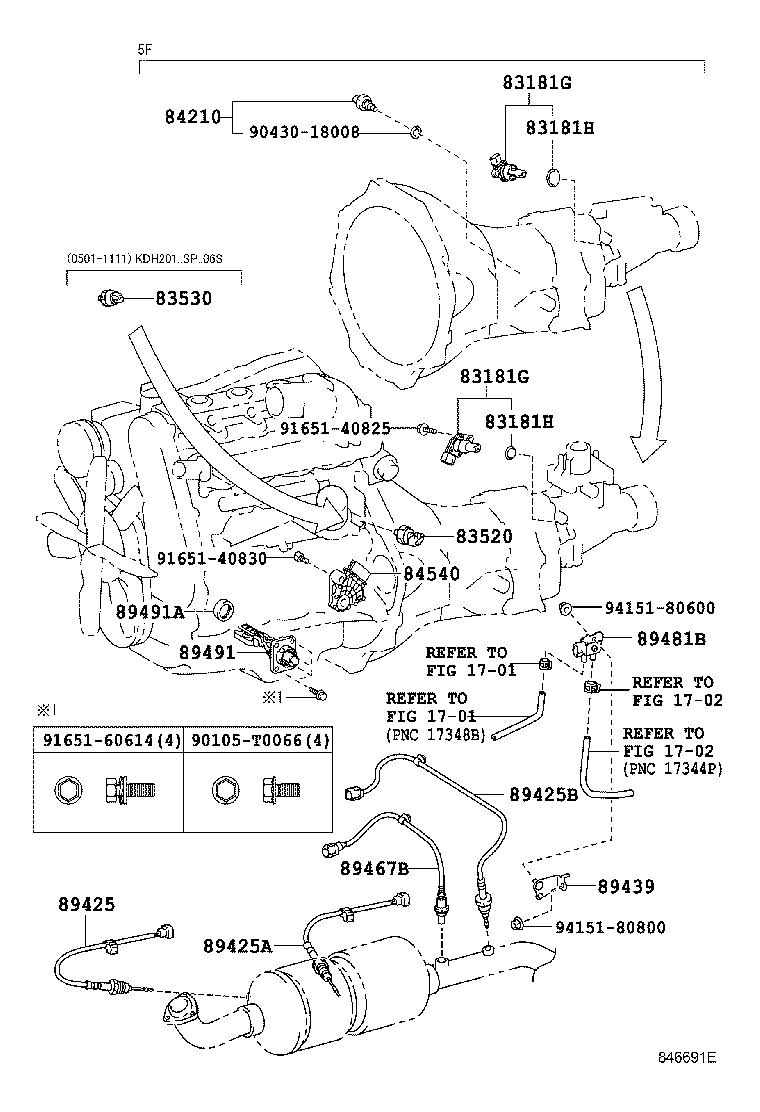

ENGINE & TRANSMISSION ILLUST NO. 1 OF 6(0501- )KDH20#,212,22#

HIACE | SWITCH RELAY COMPUTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 83181G - SENSOR, SPEEDOMETER 83181G - SENSOR, SPEEDOMETER 83181H - RING, O (FOR SPEEDOMETER SENSOR) 83181H - RING, O (FOR SPEEDOMETER SENSOR) 83520 - GAGE ASSY,OIL PRESSURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 89425 - SENSOR, EXHAUST GAS TEMPERATURE 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 89439 - BRACKET, SENSOR 89467B - SENSOR, AIR FUEL RATIO 89481B - SENSOR, DIFFERENTIAL PRESSURE 89491 - SENSOR, ENGINE OIL LEVEL 89491A - GASKET, ENGINE OIL LEVEL SENSOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
