TOYOTA HILUX KUN25R-PRMDHN / POWERTRAIN-CHASSIS / CLUTCH RELEASE FORK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

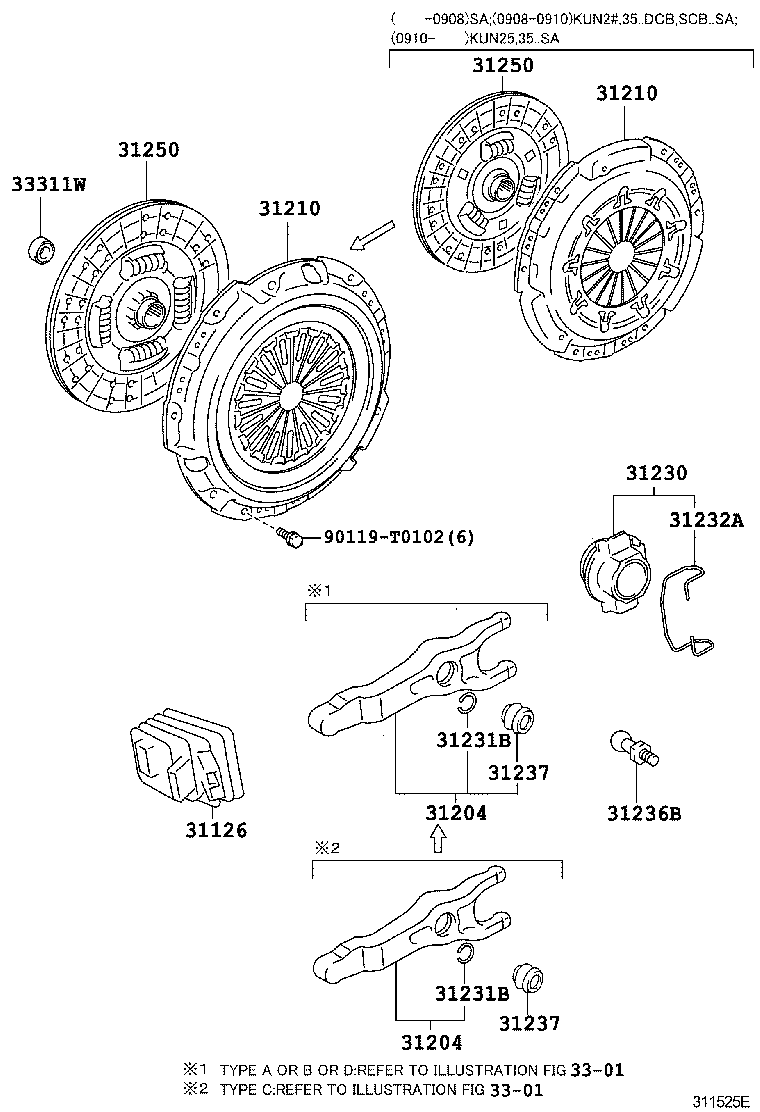

CLUTCH RELEASE FORK

(0411- )KUN16,2#,3#..5F..ANCOM,ARL,GCC,GEN,ID

 HILUX |  CLUTCH RELEASE FORK 31126 - BOOT, CLUTCH RELEASE FORK 31204 - FORK SUB-ASSY, CLUTCH RELEASE 31204 - FORK SUB-ASSY, CLUTCH RELEASE 31210 - COVER ASSY, CLUTCH 31210 - COVER ASSY, CLUTCH 31230 - BEARING ASSY, CLUTCH RELEASE 31231B - RING, SNAP(FOR CLUTCH RELEASE HUB) 31231B - RING, SNAP(FOR CLUTCH RELEASE HUB) 31232A - CLIP, RELEASE BEARING HUB 31236B - SUPPORT, RELEASE FORK 31237 - BOOT, CLUTCH RELEASE FORK SUPPORT 31237 - BOOT, CLUTCH RELEASE FORK SUPPORT 31250 - DISC ASSY, CLUTCH 31250 - DISC ASSY, CLUTCH ** Refer Fig ** Refer Fig 33311W - BEARING (FOR INPUT SHAFT)  ** Std Part
