TOYOTA PREVIA TARAGO ACR50L-GFPGKV / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

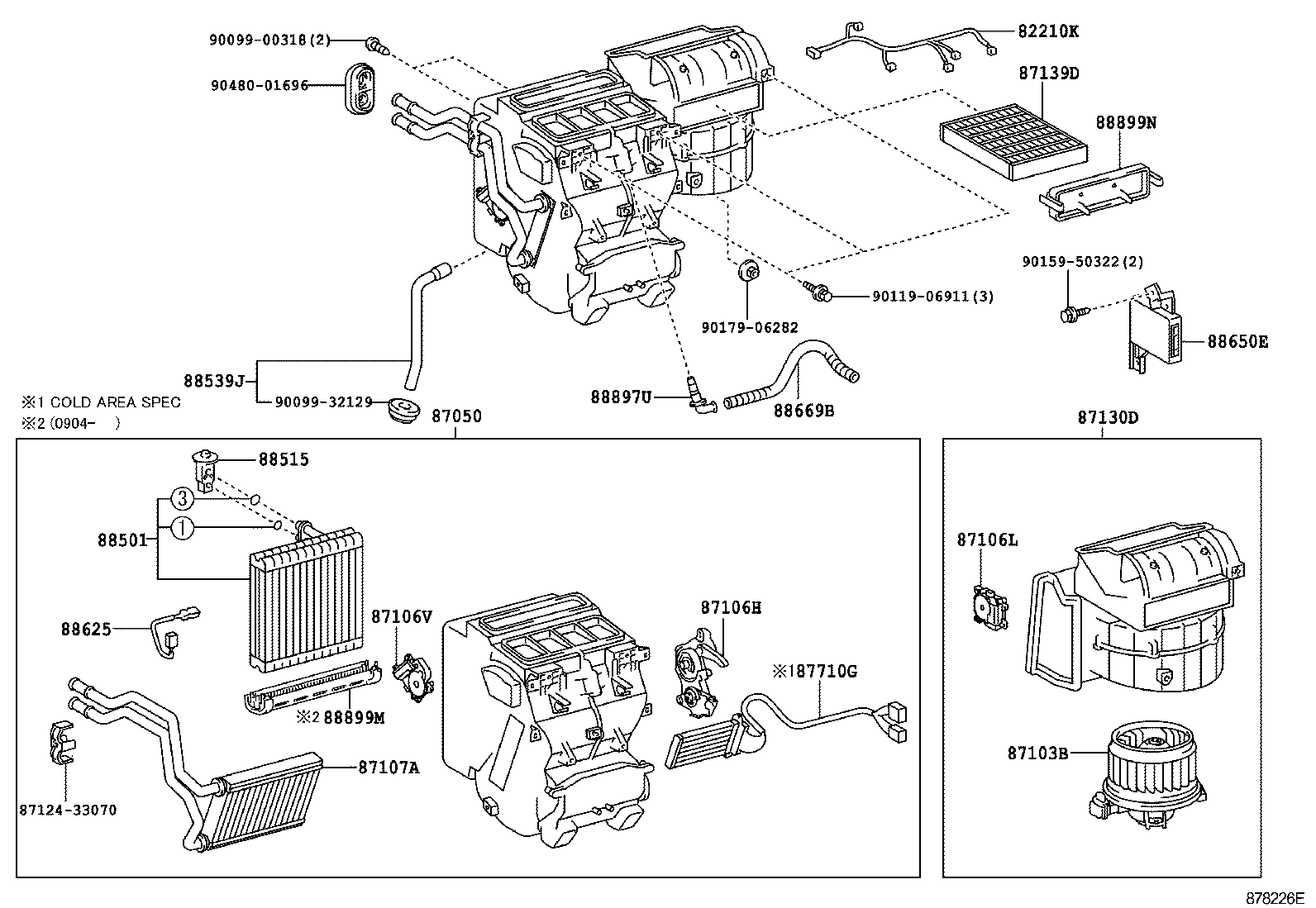

HEATING AIR CONDITIONING COOLER UNIT

FRONT ILLUST NO. 1 OF 2(0601- )LHD

PREVIA TARAGO | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106L - SERVO SUB-ASSY, DAMPER 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) 87107A - UNIT SUB-ASSY, HEATER RADIATOR ** Std Part 87130D - BLOWER ASSY 87139D - ELEMENT, AIR REFINER 87710G - QUICK HEATER ASSY 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539J - HOSE, DRAIN COOLER 88625 - THERMISTOR, COOLER, NO.1 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 88669B - HOSE, COOLER AIR 88897U - PIPE, ASPIRATOR 88899M - PLATE, COVER(FOR AIR FILTER) 88899N - PLATE, COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
