TOYOTA RAV4 ZSA35L-AWFXPW / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR FLOOR PANEL REAR FLOOR MEMBER

(0511- )ACA30,31,ALA3#,ZSA3#

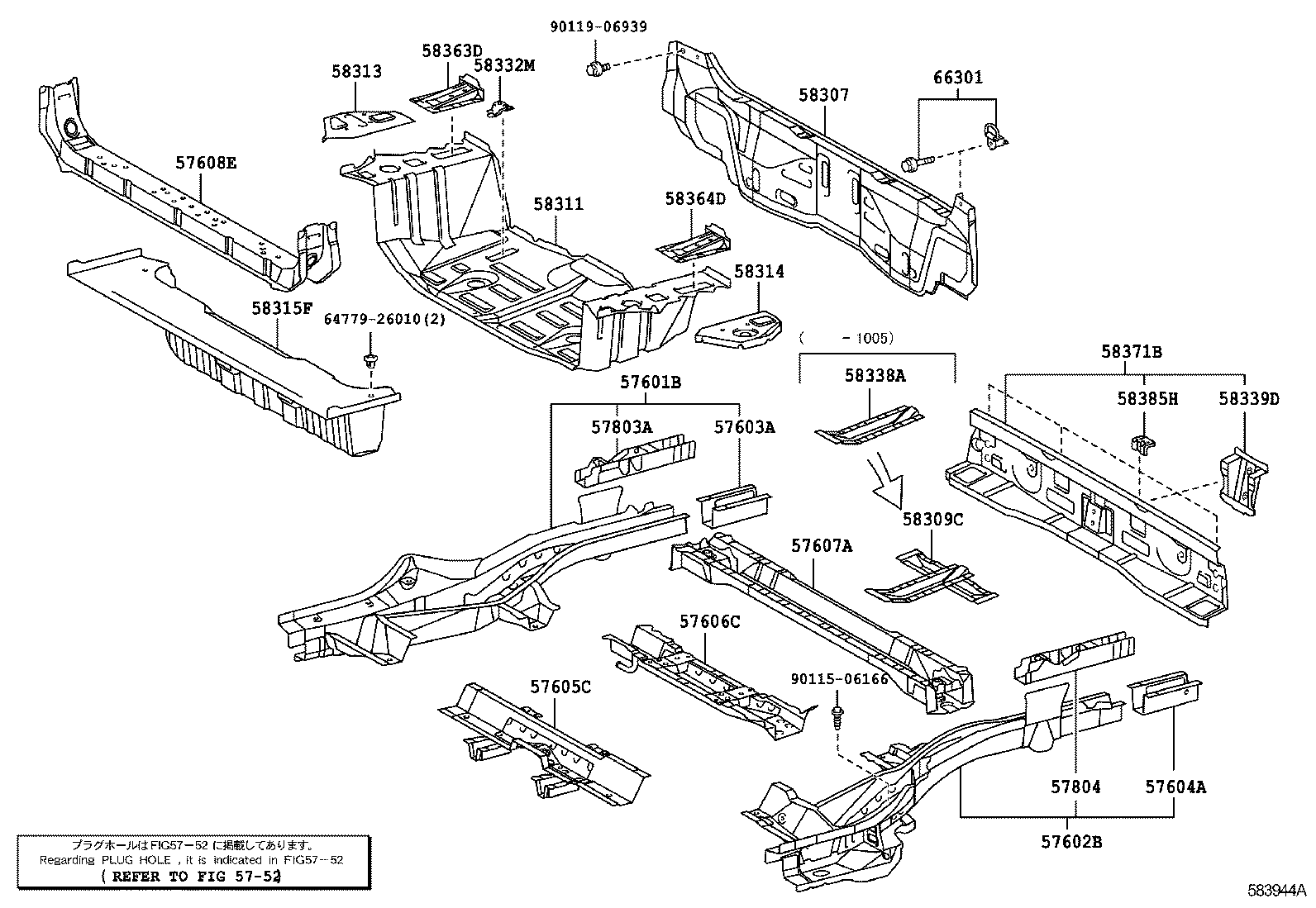

RAV4 | REAR FLOOR PANEL REAR FLOOR MEMBER ** Refer Fig 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 57608E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58309C - GUARD SUB-ASSY, REAR VALANCE PANEL 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58315F - EXTENSION, REAR FLOOR SIDE PANEL, FRONT 58332M - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 58339D - BRACKET, JACK UP 58363D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 RH 58364D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 LH 58371B - PANEL, BODY LOWER BACK, OUTER 58385H - BRACKET, REAR BUMPER COVER, NO.1 ** Std Part 66301 - HOOK SUB-ASSY, ROPE ** Std Part ** Std Part
