TOYOTA RAV4 ZSA35L-AWFXPW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

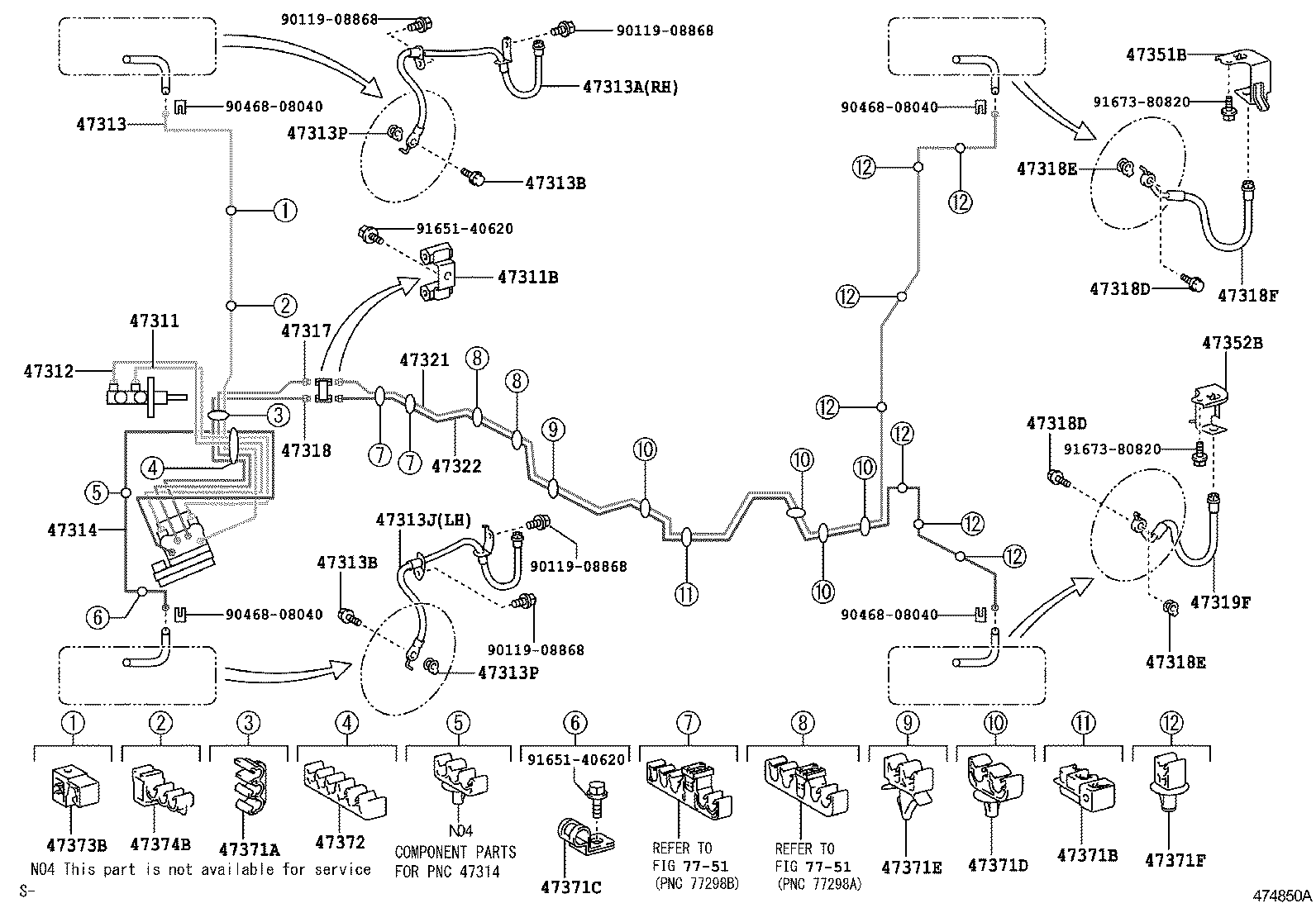

BRAKE TUBE CLAMP

W(ABS) ILLUST NO. 1 OF 2(0511- )GCC,GEN ; (0511- )ACA30,ALA30,ZSA3

RAV4 | BRAKE TUBE CLAMP 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47317 - TUBE, FRONT BRAKE, NO.7 47318 - TUBE, FRONT BRAKE, NO.8 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47322 - TUBE, REAR BRAKE, NO.2 47351B - BRACKET, FLEXIBLE HOSE, NO.1 47352B - BRACKET, FLEXIBLE HOSE, NO.2 47371A - CLAMP, BRAKE TUBE, NO.1 47371B - CLAMP, BRAKE TUBE, NO.6 47371C - CLAMP, BRAKE TUBE, NO.7 47371D - CLAMP, BRAKE TUBE, NO.8 47371E - CLAMP, BRAKE TUBE, NO.9 47371F - CLAMP, BRAKE TUBE, NO.10 47372 - CLAMP, BRAKE TUBE, NO.2 47373B - CLAMP, BRAKE TUBE, NO.3 47374B - CLAMP, BRAKE TUBE, NO.4 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
