TOYOTA RAV4 ZSA35R-AWFXPW / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

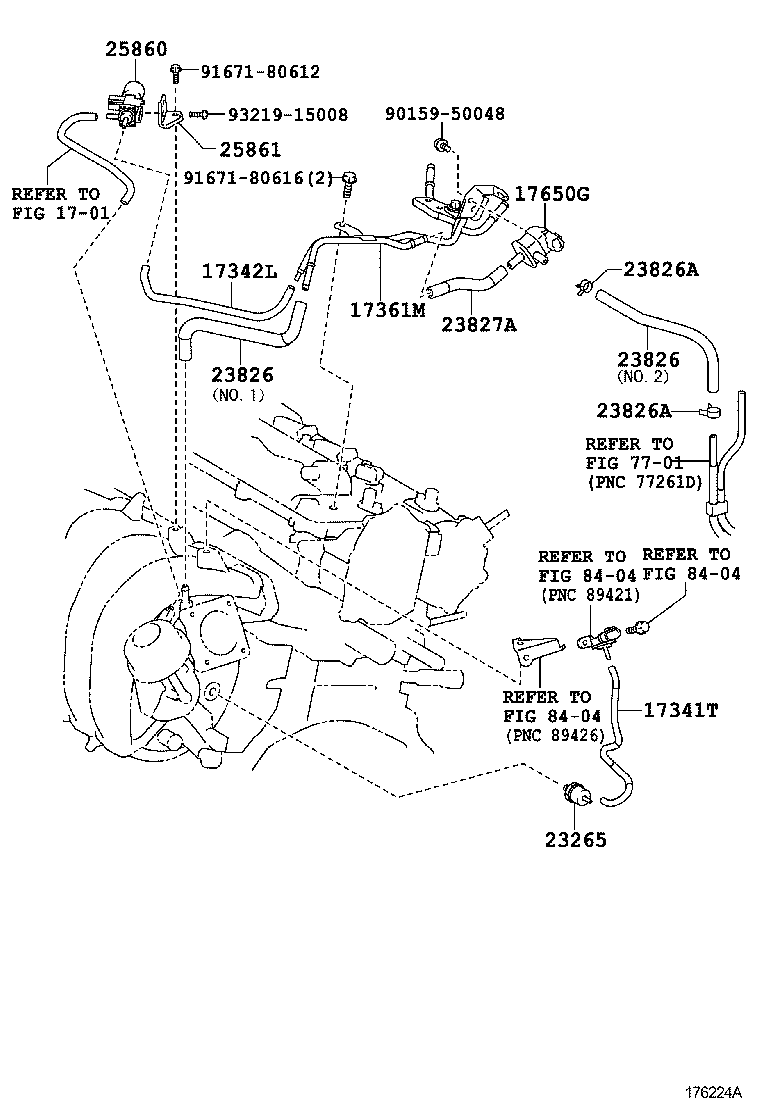

VACUUM PIPING

(0812- )3ZRFAE

RAV4 | VACUUM PIPING ** Refer Fig 17341T - HOSE, AIR, NO.1 17342L - HOSE, AIR, NO.2 17361M - TUBE, AIR 17650G - VALVE, DUTY VACUUM SWITCHING 23265 - FILTER, GAS, NO.1 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23827A - HOSE, FUEL VAPOR FEED, NO.2 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25861 - BRACKET, VACUUM SWITCHING VALVE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
