TOYOTA HIGHLANDER KLUGER GSU40R-BRAGKQ / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

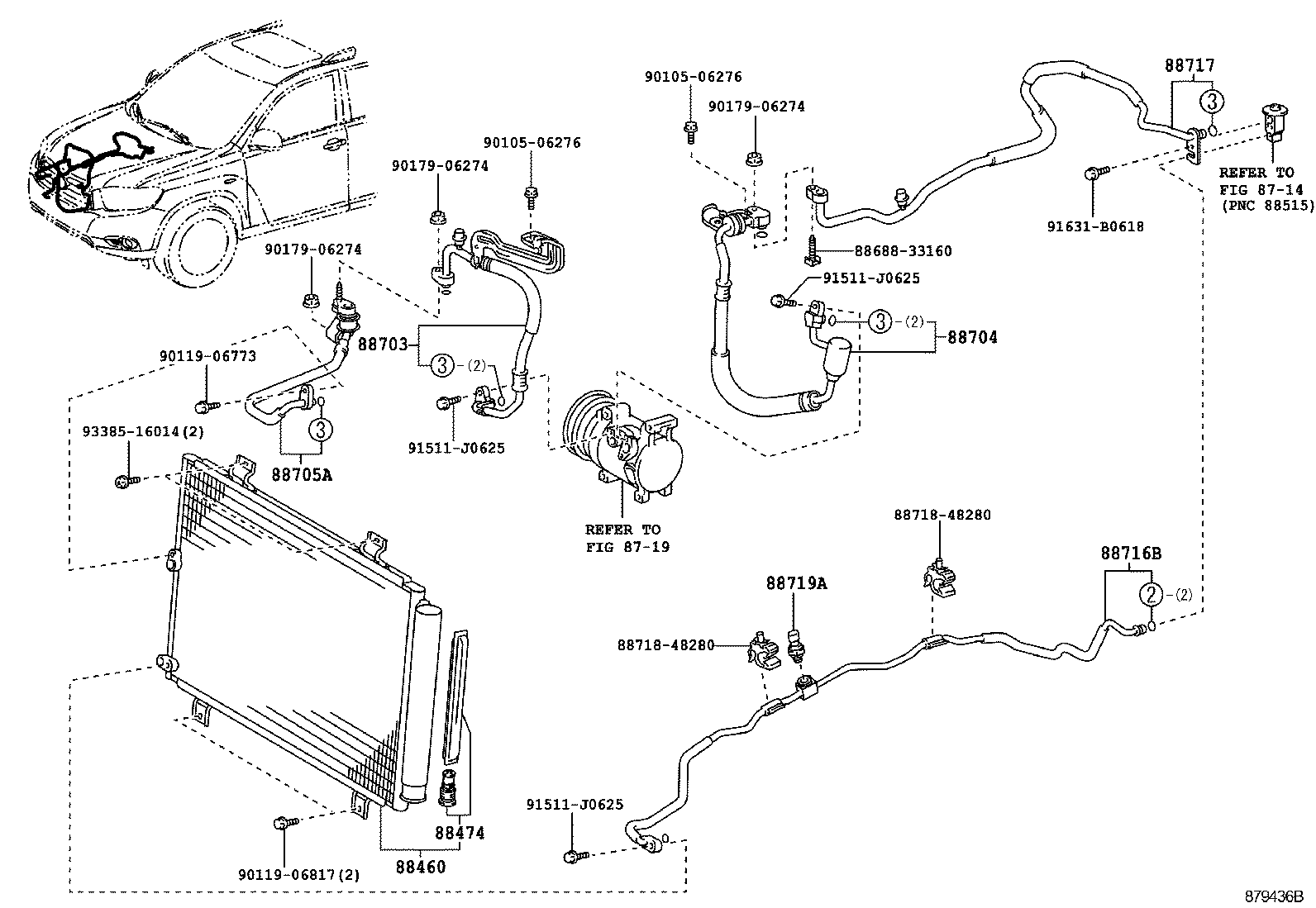

HEATING AIR CONDITIONING COOLER PIPING

FRONT ILLUST NO. 1 OF 3(0705-1007)ARL

HIGHLANDER KLUGER | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88705A - TUBE SUB-ASSY, DISCHARGE 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
