TOYOTA LAND CRUISER PRADO LJ120R-GKMEE / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

(0209- )LJ120..RHD

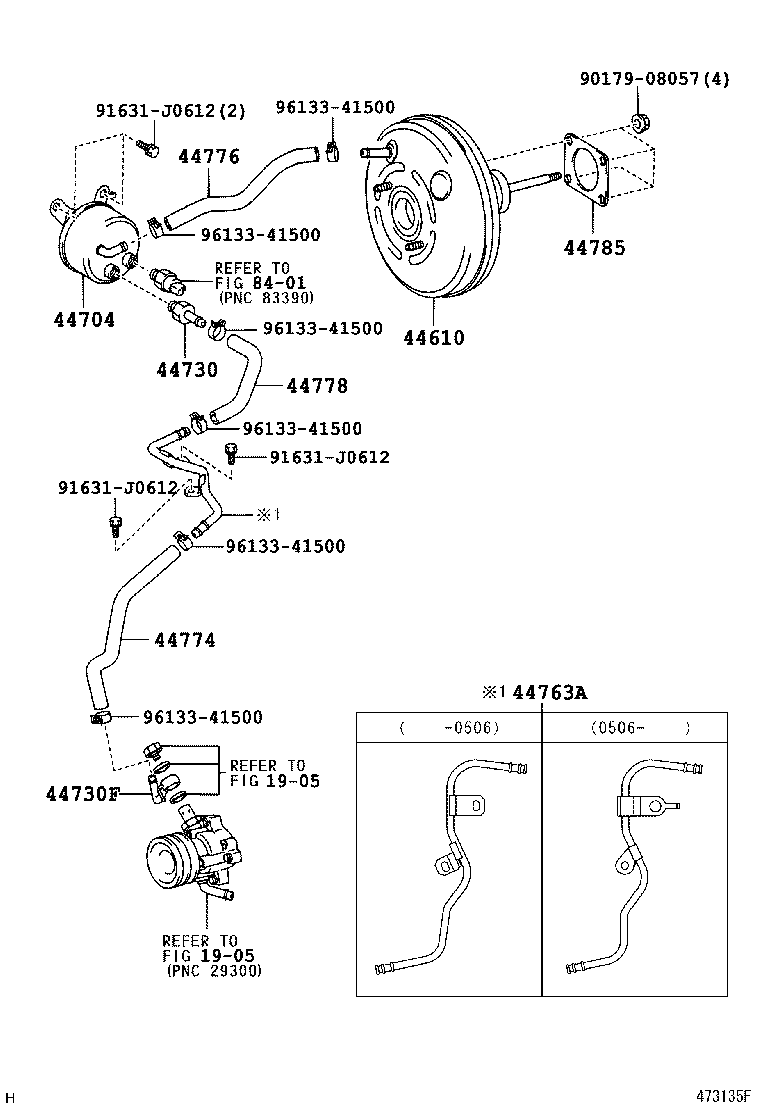

LAND CRUISER PRADO | BRAKE BOOSTER VACUUM TUBE ** Refer Fig ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) 44763A - TUBE, HOSE TO HOSE, NO.1 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44785 - GASKET, BRAKE BOOSTER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
