TOYOTA LAND CRUISER PRADO LJ150R-GKMEE / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

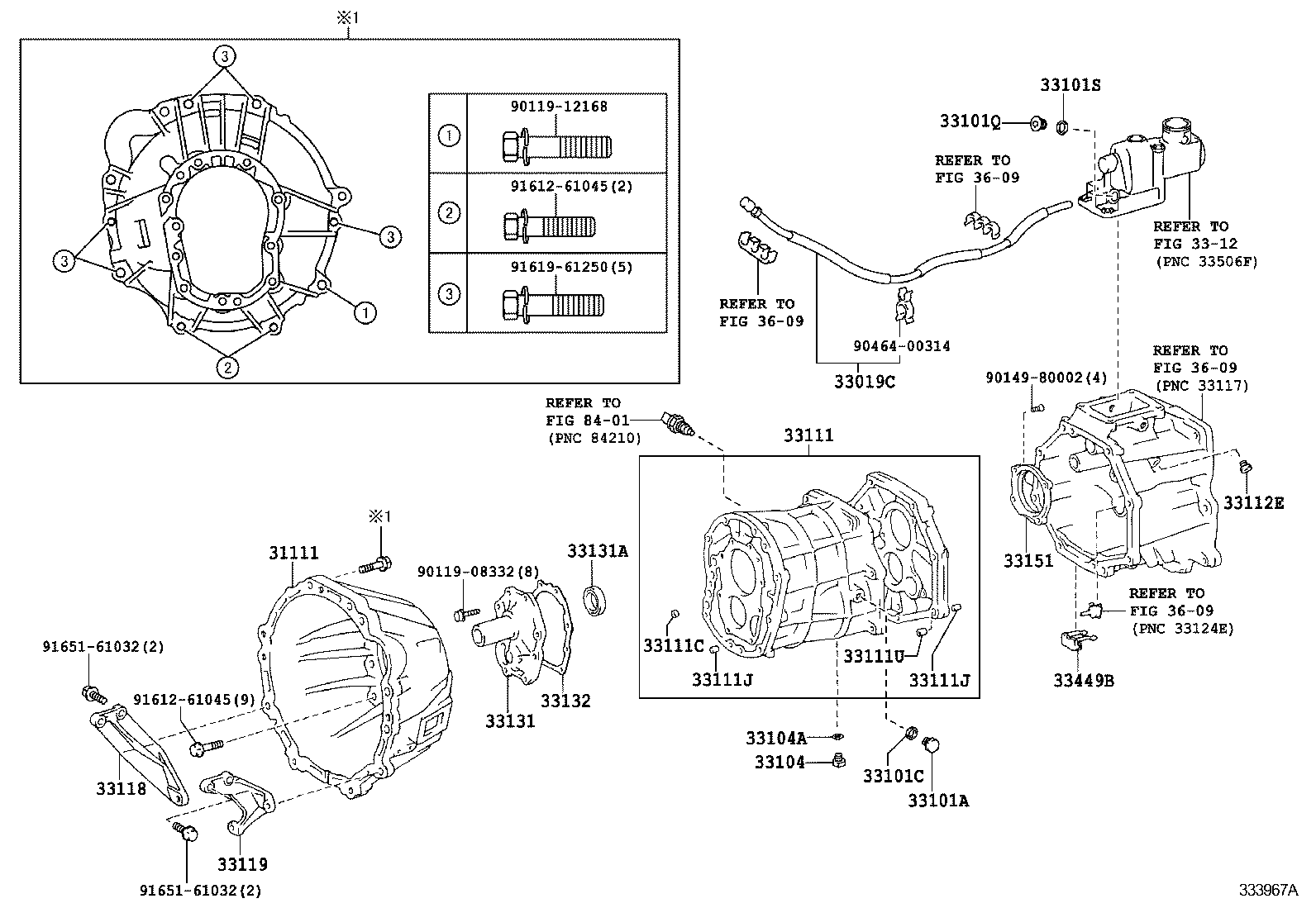

CLUTCH HOUSING TRANSMISSION CASE MTM

G52F (0908- )LJ150

LAND CRUISER PRADO | CLUTCH HOUSING TRANSMISSION CASE MTM 31111 - HOUSING, CLUTCH 33019C - BREATHER SUB-ASSY, TRANSMISSION 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) 33101S - GASKET(FOR TRANSMISSION CASE PLUG NO.1) 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111C - PLUG(FOR TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) 33112E - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER) 33118 - PLATE, STIFFENER, RH(MTM) 33119 - PLATE, STIFFENER, LH(MTM) ** Refer Fig 33131 - RETAINER, BEARING, FRONT(MTM) 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) 33132 - GASKET, FRONT BEARING RETAINER(MTM) 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) 33449B - MAGNET, TRANSMISSION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
