TOYOTA LAND CRUISER PRADO LJ150R-GKMEE / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSFER CASE EXTENSION HOUSING

(0908- )LJ150

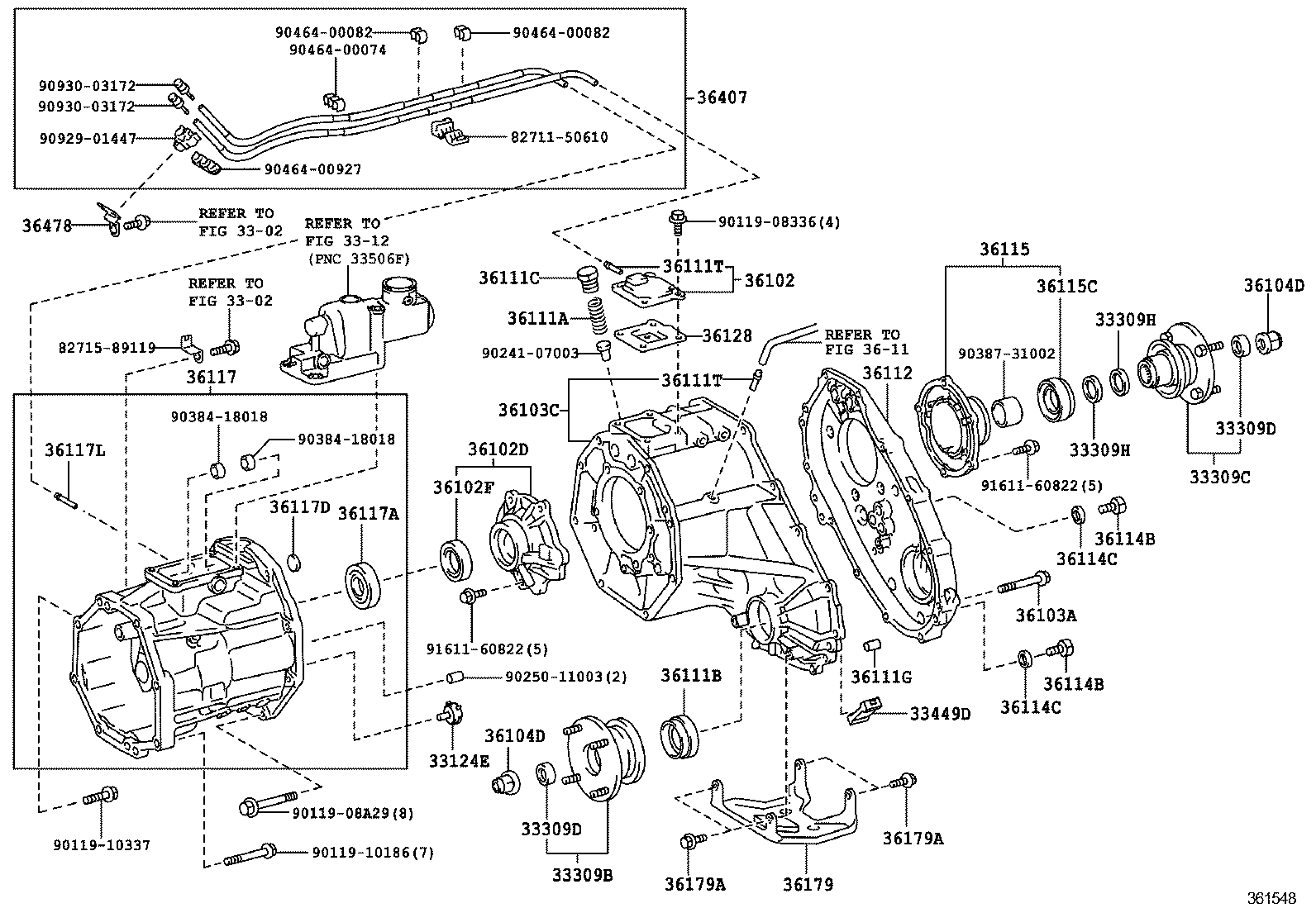

LAND CRUISER PRADO | TRANSFER CASE EXTENSION HOUSING ** Refer Fig ** Refer Fig ** Refer Fig 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) 33309H - WASHER, TRANSFER OUTPUT SHAFT 33309H - WASHER, TRANSFER OUTPUT SHAFT 33449D - MAGNET (FOR TRANSFER CASE) 36102 - COVER SUB-ASSY, TRANSFER CASE 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING 36102F - SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER) 36103A - BOLT (FOR TRANSFER CASE) 36103C - CASE, TRANSFER, FRONT 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) ** Refer Fig 36111A - SPRING, COMPRESSION (FOR TRANSFER CASE) 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111C - PLUG (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111T - TUBE (FOR TRANSFER CASE) 36111T - TUBE (FOR TRANSFER CASE) 36112 - CASE, TRANSFER, REAR 36114B - PLUG, NO.1 (FOR TRANSFER CASE) 36114B - PLUG, NO.1 (FOR TRANSFER CASE) 36114C - GASKET, NO.1 (FOR TRANSFER CASE) 36114C - GASKET, NO.1 (FOR TRANSFER CASE) 36115 - HOUSING, TRANSFER EXTENSION 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) 36117 - ADAPTER, TRANSFER 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) 36117D - PLUG(FOR TRANSFER ADAPTER) 36117L - TUBE(FOR TRANSFER ADAPTER) 36128 - DEFLECTOR, BREATHER OIL 36179 - PROTECTOR, TRANSFER CASE LOWER 36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR) 36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR) 36407 - HOSE SUB-ASSY, TRANSFER BREATHER 36478 - BRACKET, TRANSFER BREATHER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
