TOYOTA LAND CRUISER PRADO LJ150R-GKMEE / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(0908- )LJ150..RHD

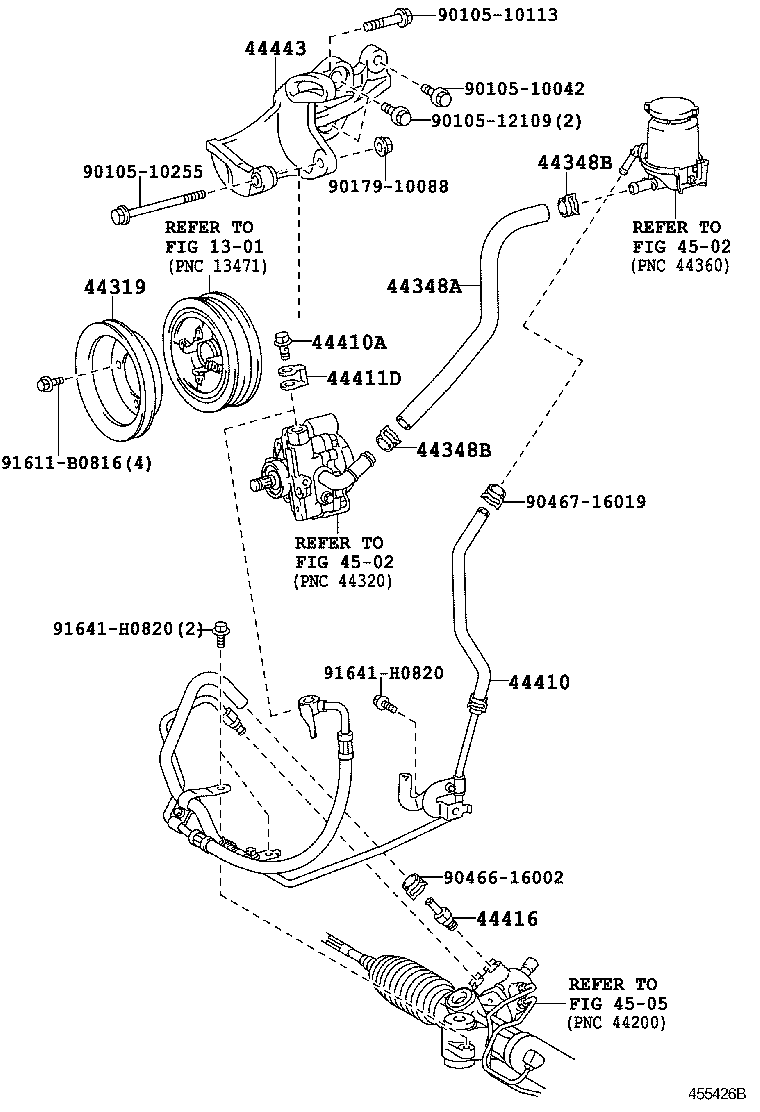

 LAND CRUISER PRADO |  POWER STEERING TUBE ** Refer Fig 44319 - PULLEY, VANE PUMP DRIVE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44443 - BRACKET, PUMP ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
