TOYOTA LAND CRUISER PRADO LJ150R-GKMEE / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

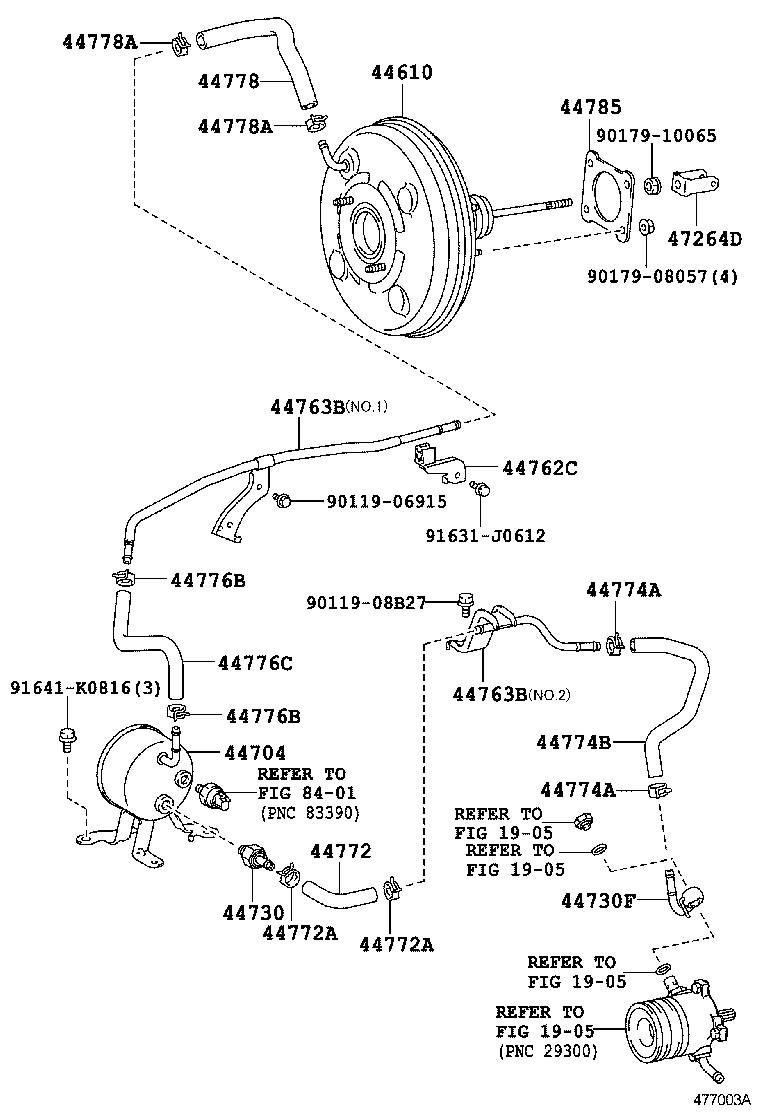

BRAKE BOOSTER VACUUM TUBE

(0908- )LJ150..RHD

 LAND CRUISER PRADO |  BRAKE BOOSTER VACUUM TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) 44762C - CLAMP, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE HOSE 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) 44774B - HOSE, UNION TO CONNECTOR TUBE 44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) 44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR 44778 - HOSE, CONNECTOR TO CHECK VALVE 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) 44785 - GASKET, BRAKE BOOSTER 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
