TOYOTA PRIUS ZVW30R-AHXEBQ / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

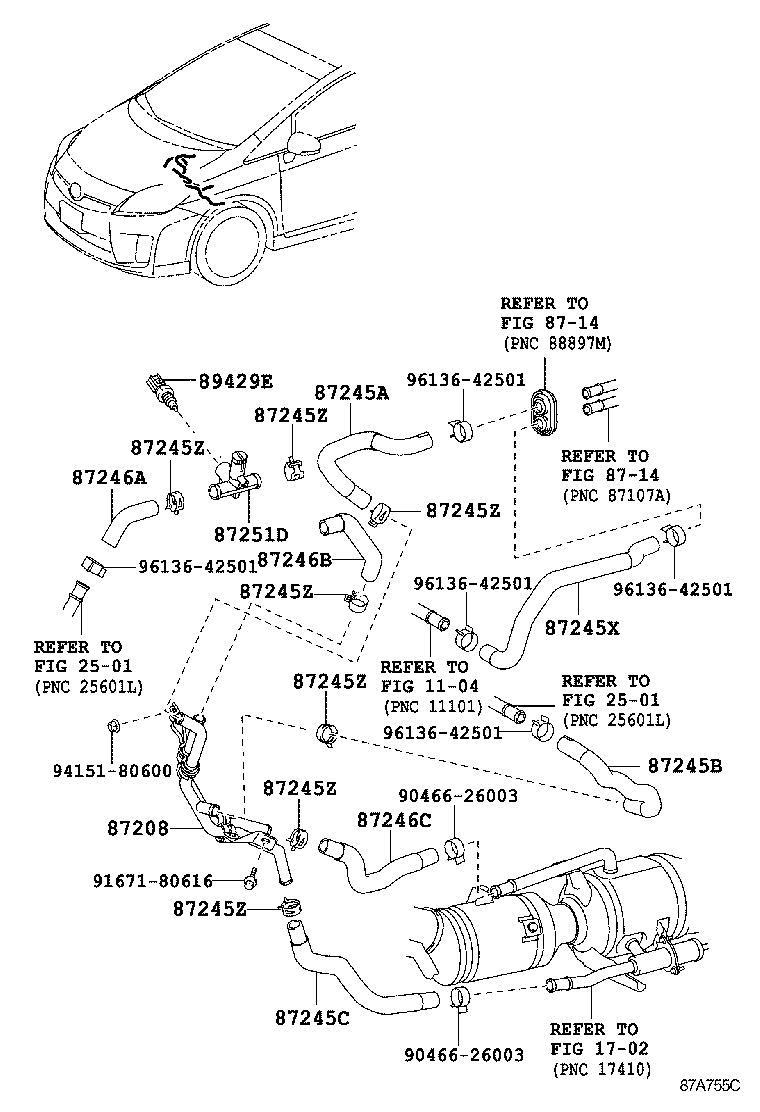

HEATING AIR CONDITIONING WATER PIPING

(0904- )ARL,EUR

PRIUS | HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87208 - PIPE SUB-ASSY, HEATER WATER 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245C - HOSE, HEATER WATER ,INLET C 87245X - HOSE, HEATER WATER 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87246C - HOSE, HEATER WATER, OUTLET C 87251D - JOINT, WATER, NO.1 89429E - SENSOR, WATER TEMPERATURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
