TOYOTA RACTIS SCP100R-CHXNKH / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

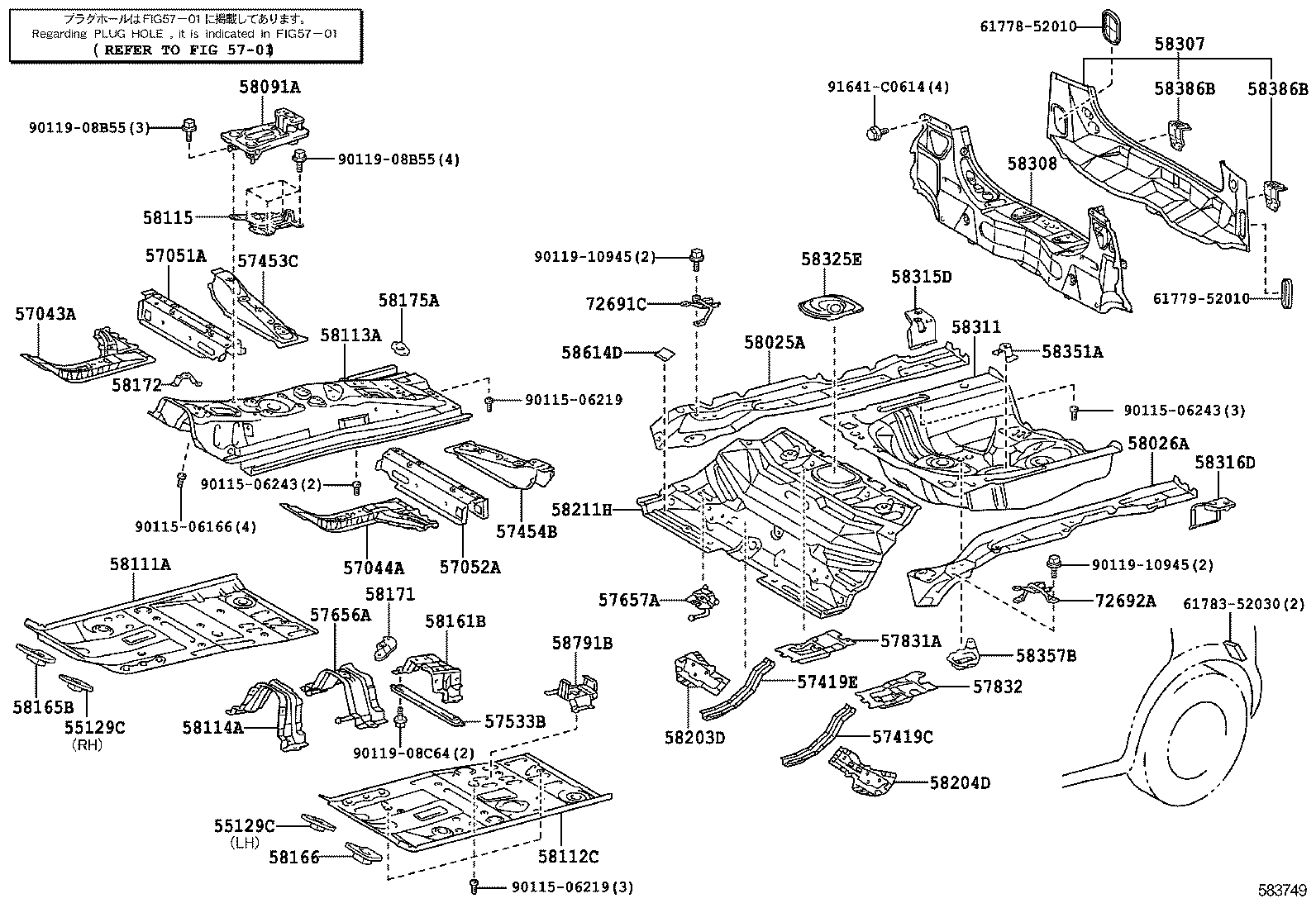

FLOOR PAN LOWER BACK PANEL

(0910- )

RACTIS | FLOOR PAN LOWER BACK PANEL 55129C - COVER, DASH PANEL HOLE 55129C - COVER, DASH PANEL HOLE ** Refer Fig 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57419C - REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2 57419E - REINFORCEMENT, FRONT FLOOR UNDER, RH NO.2 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH 57533B - BRACE, FRONT FLOOR, CENTER 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 57657A - BRACKET, EXHAUST PIPE MOUNTING, NO.2 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH 58091A - REINFORCEMENT SET, BODY FITTING 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58114A - REINFORCEMENT, FRONT FLOOR PANEL 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 58165B - COVER, FRONT FLOOR, RH 58166 - COVER, FRONT FLOOR, LH 58171 - REINFORCEMENT, PARKING BRAKE BASE 58172 - BRACKET, COMPUTER MOUNTING, NO.3 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH 58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH 58211H - PAN, CENTER FLOOR 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER 58311 - PAN, REAR FLOOR 58315D - EXTENSION, REAR FLOOR PAN, RH 58316D - EXTENSION, REAR FLOOR PAN, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58351A - BRACKET, SPARE WHEEL CARRIER 58357B - BRACKET, ACTUATOR COVER, NO.3 RH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 58614D - SHEET, CENTER FLOOR SILENCER, RH 58791B - CARRIER, JACK ** Std Part ** Std Part ** Std Part 72691C - STRIKER, RR SEAT CUSHION LOCK, NO.1 72692A - STRIKER, RR SEAT CUSHION LOCK, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
