TOYOTA RACTIS SCP100R-CHXNKH / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

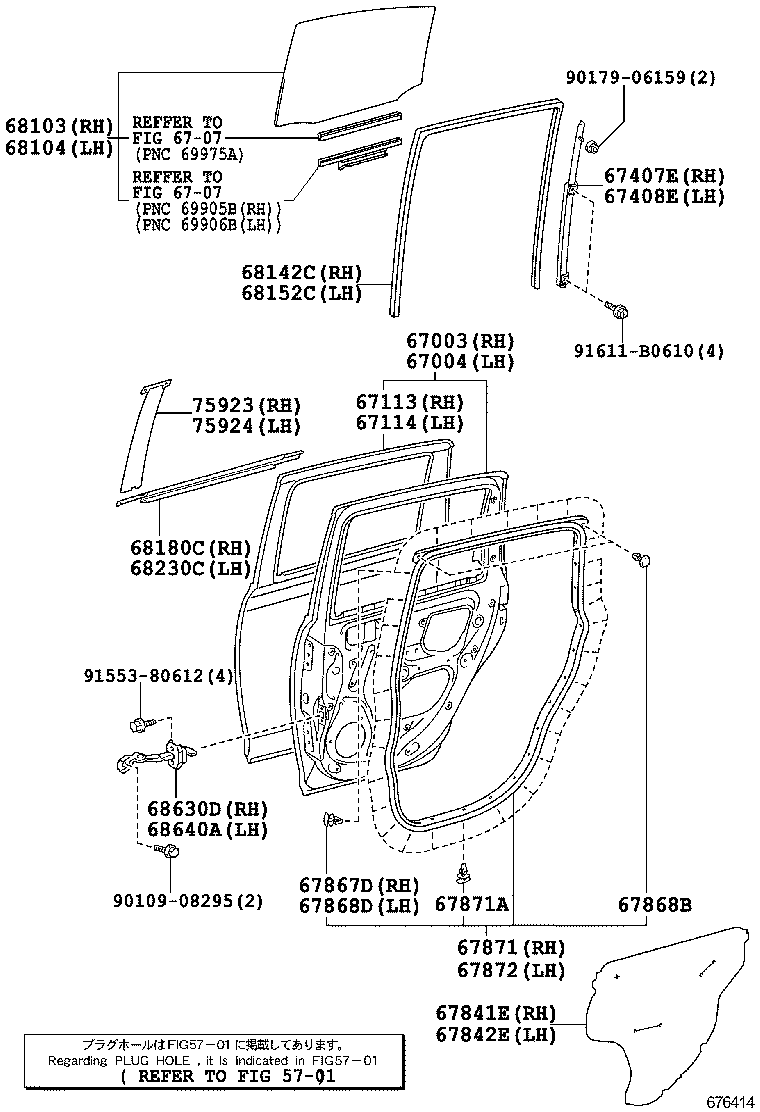

DOOR PANEL ILLUST NO. 1 OF 2(0910- )

RACTIS | REAR DOOR PANEL GLASS ** Refer Fig 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67004 - PANEL SUB-ASSY, REAR DOOR, LH 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68142C - RUN, REAR DOOR GLASS, RH 68152C - RUN, REAR DOOR GLASS, LH 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH 68630D - CHECK ASSY, REAR DOOR, RH 68640A - CHECK ASSY, REAR DOOR, LH 75923 - TAPE, BLACK OUT, NO.2 RH 75924 - TAPE, BLACK OUT, NO.2 LH ** Std Part ** Std Part ** Std Part ** Std Part
