TOYOTA RACTIS SCP100R-CHXNKH / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

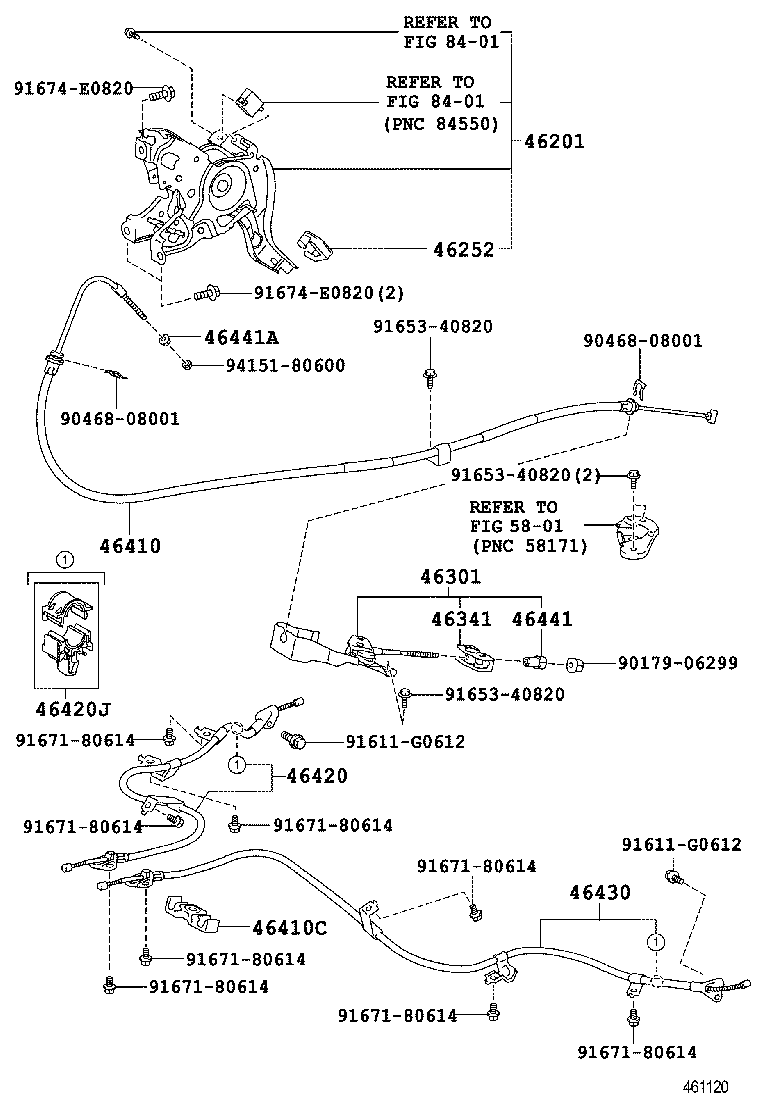

PARKING BRAKE CABLE

(0910- )

RACTIS | PARKING BRAKE CABLE 46201 - PEDAL SUB-ASSY, PARKING BRAKE 46252 - PAD, PARKING PEDAL 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE 46341 - EQUALIZER, PARKING BRAKE 46410 - CABLE ASSY, PARKING BRAKE, NO.1 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46441A - NUT, WIRE ADJUSTING, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
