TOYOTA WISH ANE11R-JPPQKT / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

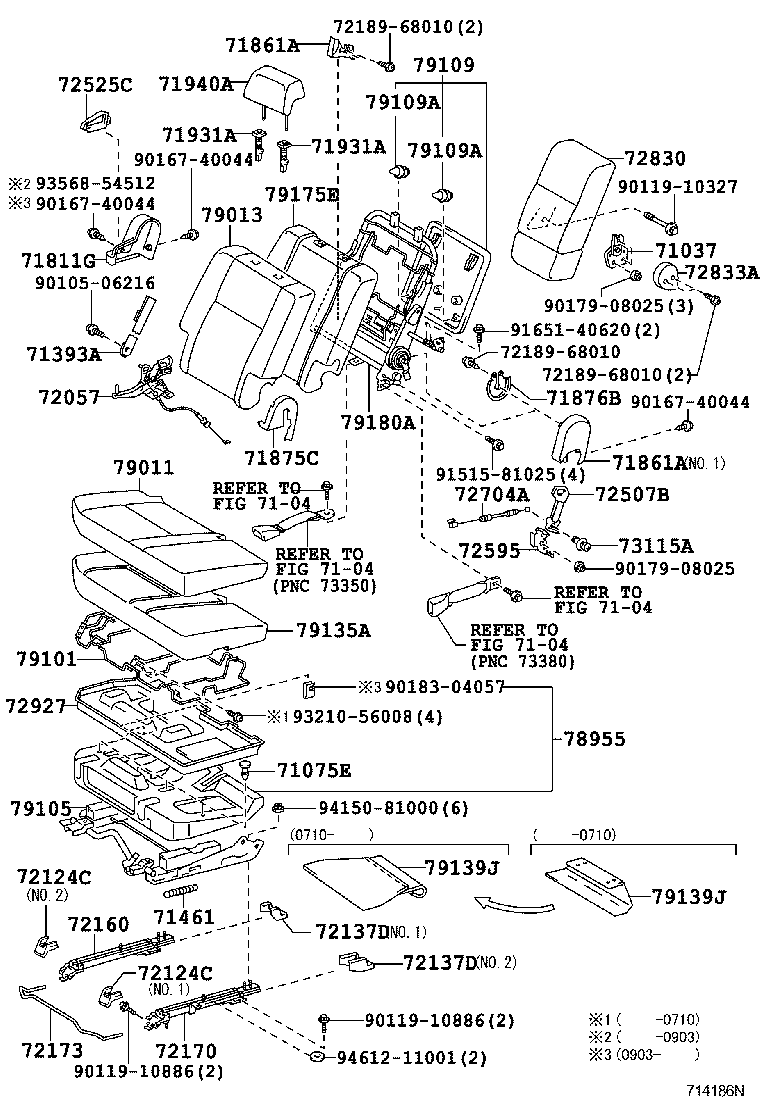

REAR SEAT SEAT TRACK

REAR NO.1 SEAT(RH) (0512-0910)ANE11..07S

WISH | REAR SEAT SEAT TRACK 71037 - HINGE SUB-ASSY, CENTER SEAT BACK, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075E - CLIP(FOR REAR SEAT) 71393A - BAND, REAR SEAT CUSHION, RH 71461 - SPRING, REAR SEAT CUSHION 71811G - SHIELD, REAR SEAT CUSHION, RH 71861A - SHIELD, REAR SEAT CUSHION, INNER RH 71861A - SHIELD, REAR SEAT CUSHION, INNER RH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72137D - COVER, REAR SEAT TRACK, RH 72137D - COVER, REAR SEAT TRACK, RH 72160 - TRACK ASSY, REAR SEAT, OUTER RH 72170 - TRACK ASSY, REAR SEAT, OUTER LH 72173 - HANDLE, REAR SEAT TRACK ADJUSTING ** Std Part ** Std Part ** Std Part 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH 72595 - BASE, RECLINING REMOTE CONTROL, RH 72704A - CABLE, REAR SEAT RECLINING CONTROL 72830 - ARMREST ASSY, REAR SEAT, CENTER 72833A - PLATE, SEAT CENTER ARMREST, INNER 72927 - COVER, REAR SEAT CUSHION UNDER, RH 73115A - CLIP, BELT COMFORT, NO.1 78955 - COVER, REAR SEAT UNDER TRAY RH 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) 79135A - PAD, NO.1 SEAT CUSHION, RH 79139J - CLOTH, NO.1 SEAT CUSHION RH 79139J - CLOTH, NO.1 SEAT CUSHION RH 79175E - PAD, NO.1 SEAT BACK, RH 79180A - SPRING ASSY, NO.1 SEAT BACK, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
