TOYOTA WISH ZNE10R-HPPNK / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

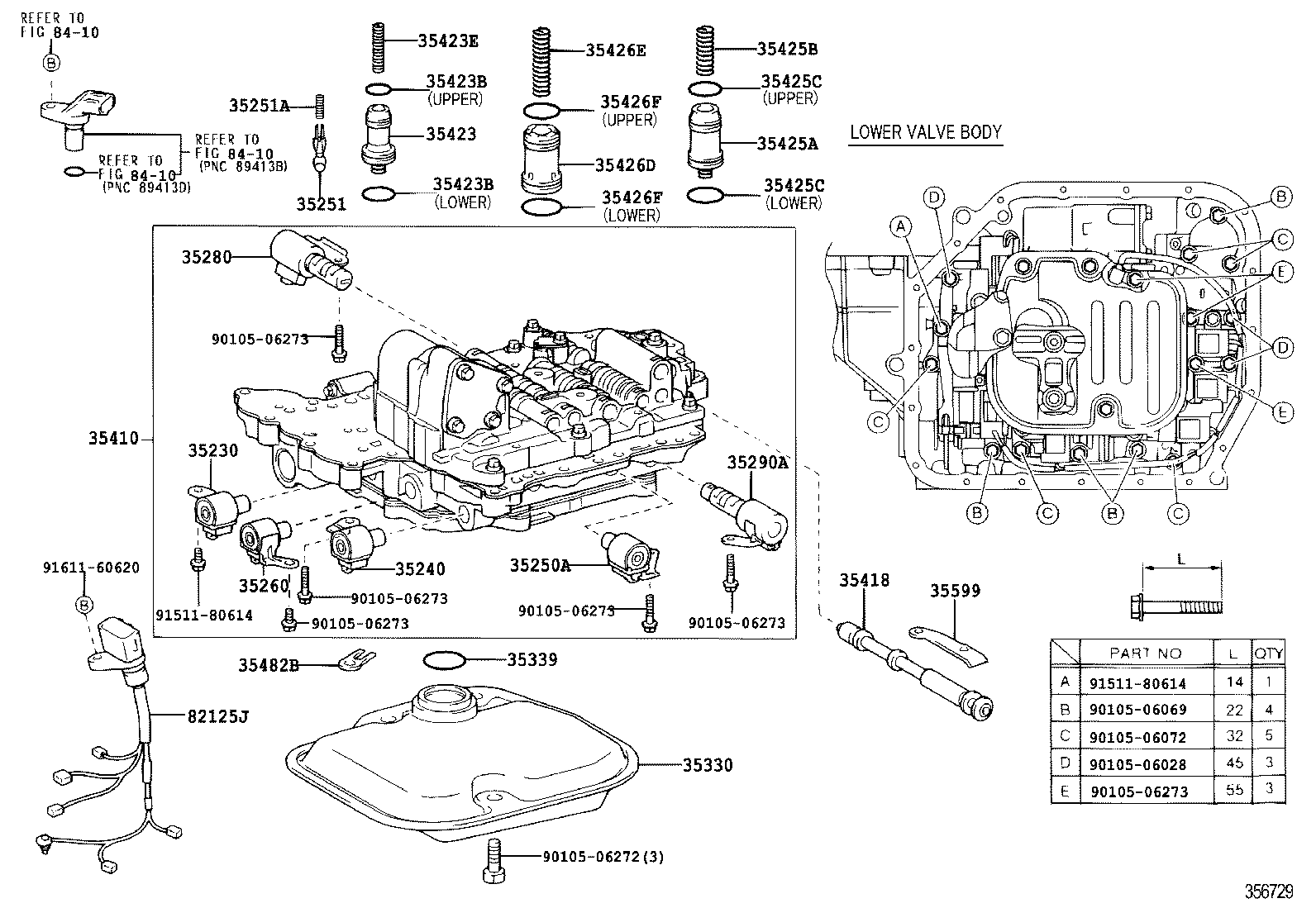

VALVE BODY OIL STRAINER ATM

U341E (0804-0903)ZNE10

WISH | VALVE BODY OIL STRAINER ATM 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 35251 - BODY, CHECK BALL 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) 35260 - ACCUMLATOR ASSY, THROTTLE PRESSURE 35280 - SOLENOID ASSY, LOCK UP CONTROL 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL 35330 - STRAINER ASSY, VALVE BODY OIL 35339 - GASKET, OIL STRAINER 35410 - BODY ASSY, TRANSMISSION VALVE 35418 - VALVE, MANUAL 35423 - PISTON, B-2 ACCUMULATOR 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) 35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) 35425A - PISTON, C-2 ACCUMULATOR 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) 35426D - PISTON, C-3 ACCUMULATOR 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) 35482B - CLAMP, TEMPERATURE SENSOR 35599 - COVER, MANUAL DETENT SPRING 82125J - WIRE, TRANSMISSION ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
