TOYOTA AVALON GSX30L-AETPKV / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

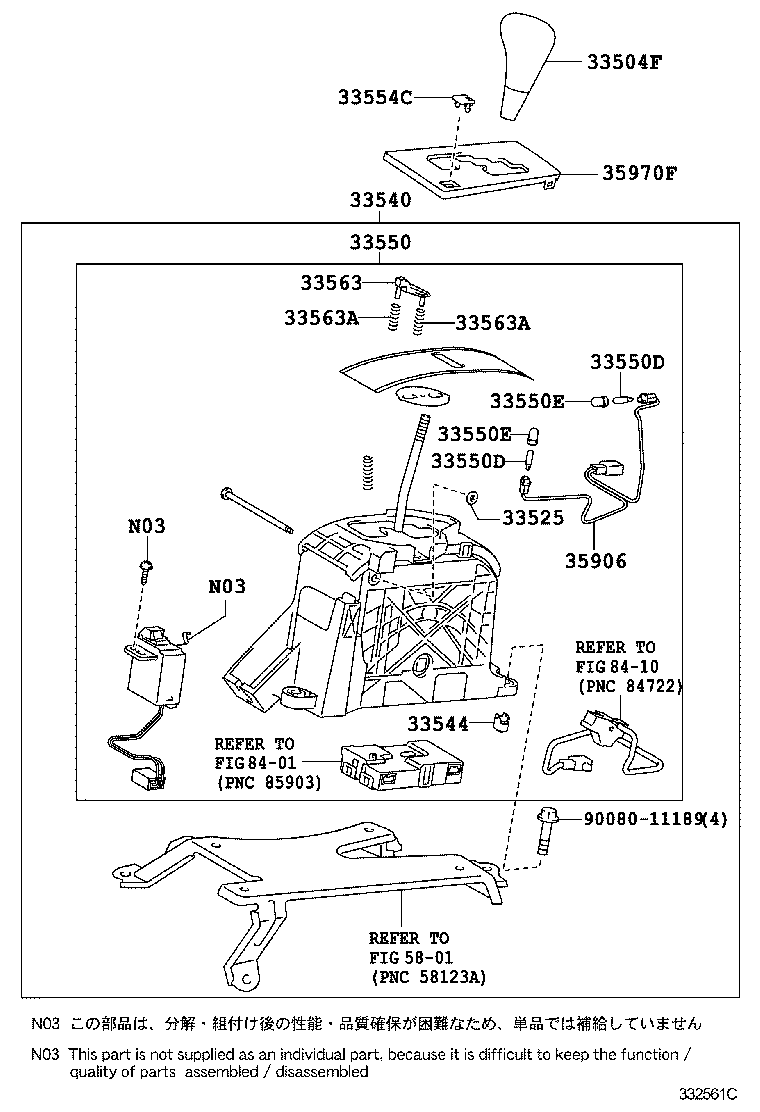

ILLUST NO. 1 OF 2(0501-1003)

 AVALON |  SHIFT LEVER RETAINER 33504F - KNOB SUB-ASSY, SHIFT LEVER 33525 - SUPPORT, SHIFT LEVER 33540 - PLATE ASSY, SHIFT LEVER 33544 - INSERT, SHIFT LEVER, NO.1 33550 - FLOOR SHIFT ASSY, TRANSMISSION 33550D - BULB, POSITION INDICATOR LAMP 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33554C - COVER, SHIFT LOCK RELEASE BUTTON 33563 - BUTTON, SHIFT LOCK RELEASE 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35970F - HOUSING ASSY, POSITION INDICATOR ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part
