TOYOTA HILUX KUN25R-PRMDHP / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

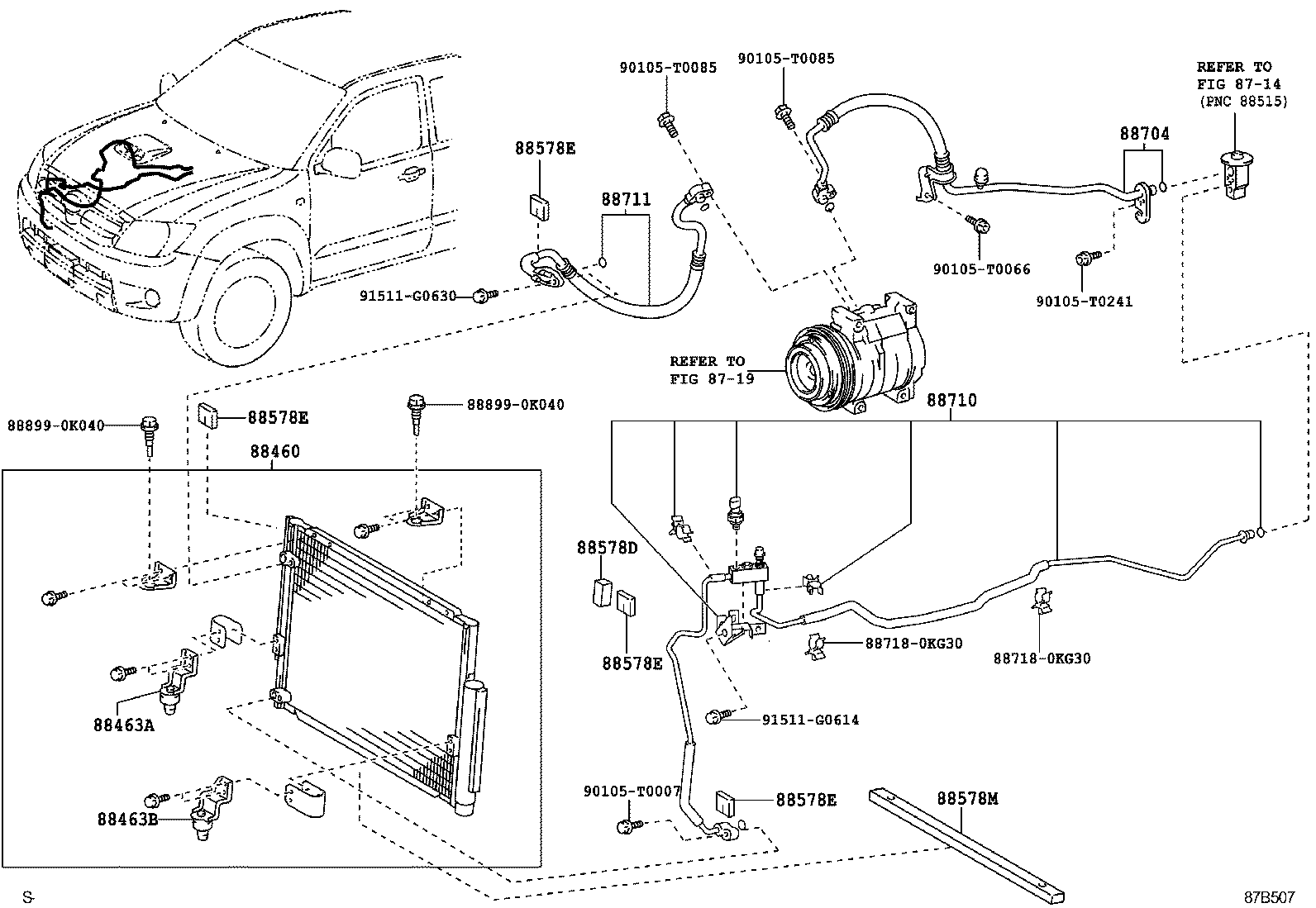

ILLUST NO. 1 OF 2(1010- )KUN25..PKN

HILUX | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88463A - BRACKET, COOLER CONDENSER, NO.2 88463B - BRACKET, COOLER CONDENSER, NO.3 88578D - PACKING, COOLER PIPE, NO.1 88578E - PACKING, COOLER PIPE, NO.2 88578E - PACKING, COOLER PIPE, NO.2 88578E - PACKING, COOLER PIPE, NO.2 88578E - PACKING, COOLER PIPE, NO.2 88578M - PACKING, COOLING PIPE, NO.3 88704 - HOSE SUB-ASSY, SUCTION 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
