TOYOTA AVENSIS AZT270R-AEPGK / BODY / LUGGAGE COMPARTMENT DOOR LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

LUGGAGE COMPARTMENT DOOR LOCK

(0811- )

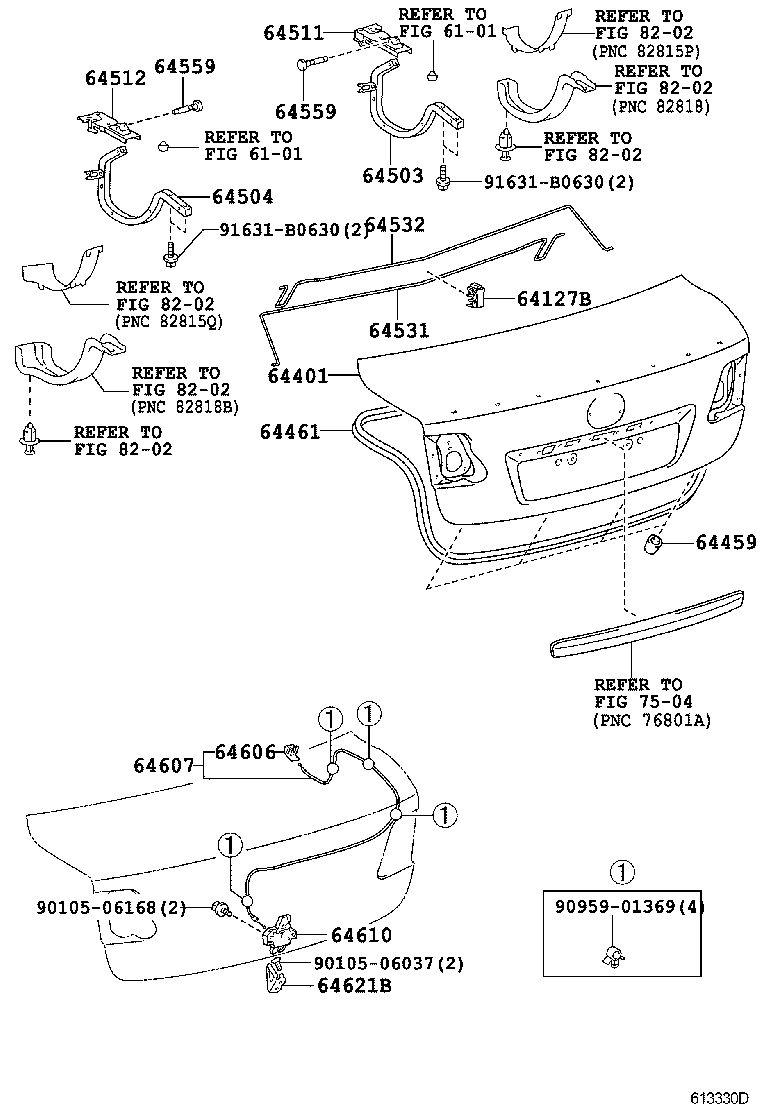

 AVENSIS |  LUGGAGE COMPARTMENT DOOR LOCK ** Refer Fig ** Refer Fig 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH 64559 - PIN, LUGGAGE DOOR HINGE 64559 - PIN, LUGGAGE DOOR HINGE 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
