TOYOTA PRIUS C NHP10L-AHXVB / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

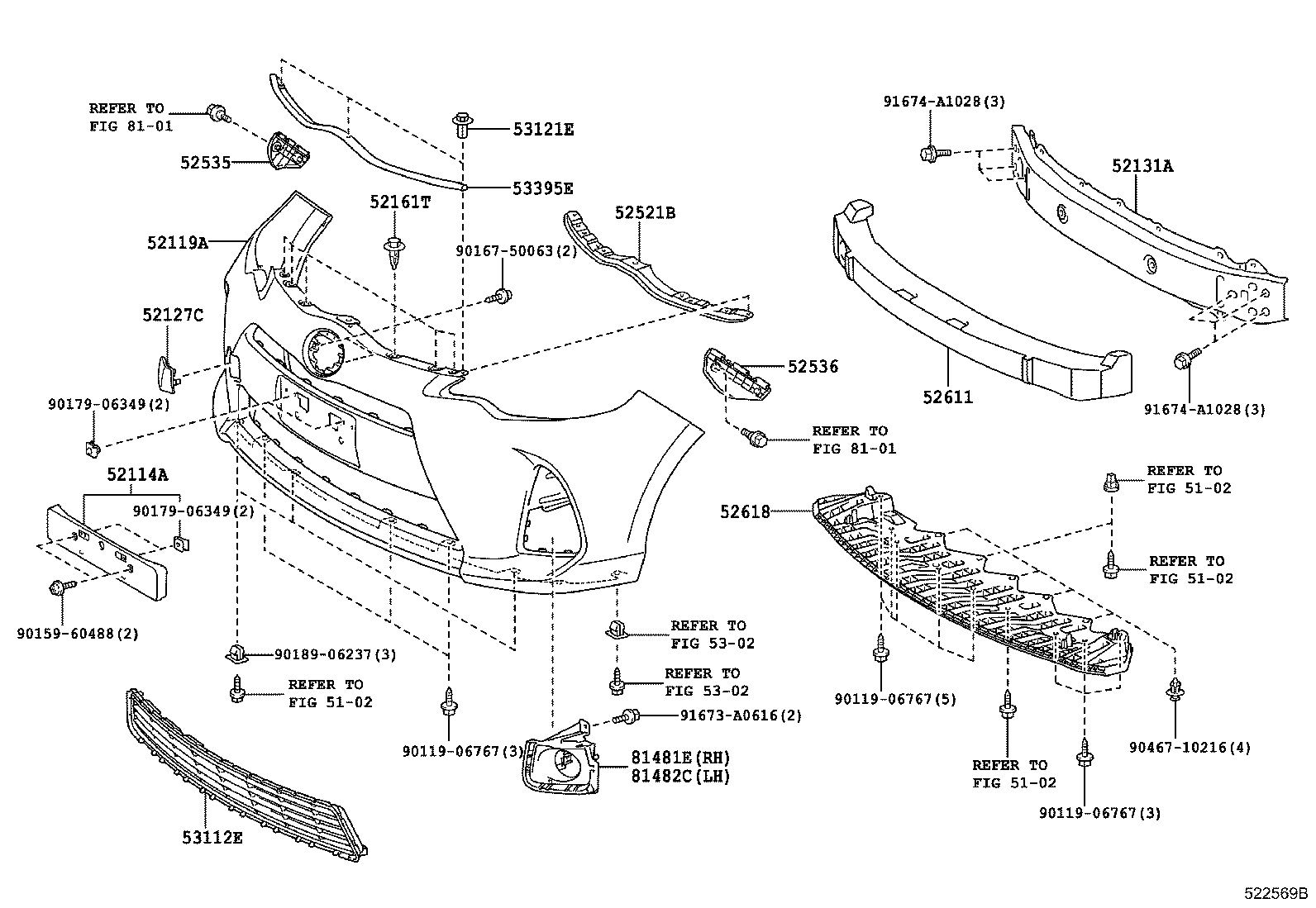

FRONT BUMPER BUMPER STAY

(1112- )

 PRIUS C |  FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 52114A - BRACKET, FRONT BUMPER EXTENTION MOUNTING 52119A - COVER, FRONT BUMPER 52127C - COVER, FRONT BUMPER HOLE 52131A - REINFORCEMENT, FRONT BUMPER 52161T - PIECE, FRONT BUMPER 52521B - RETAINER, FRONT BUMPER, UPPER 52535 - RETAINER, FRONT BUMPER SIDE, RH 52536 - RETAINER, FRONT BUMPER SIDE, LH 52611 - ABSORBER, FRONT BUMPER ENERGY 52618 - ABSORBER, FRONT BUMPER, LOWER ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53121E - CLIP(FOR FRONT BUMPER), NO.1 53395E - SEAL, HOOD TO FRONT END PANEL ** Refer Fig ** Refer Fig 81481E - COVER, FOG LAMP, RH 81482C - COVER, FOG LAMP, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
