TOYOTA PRIUS C NHP10L-AHXVB / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

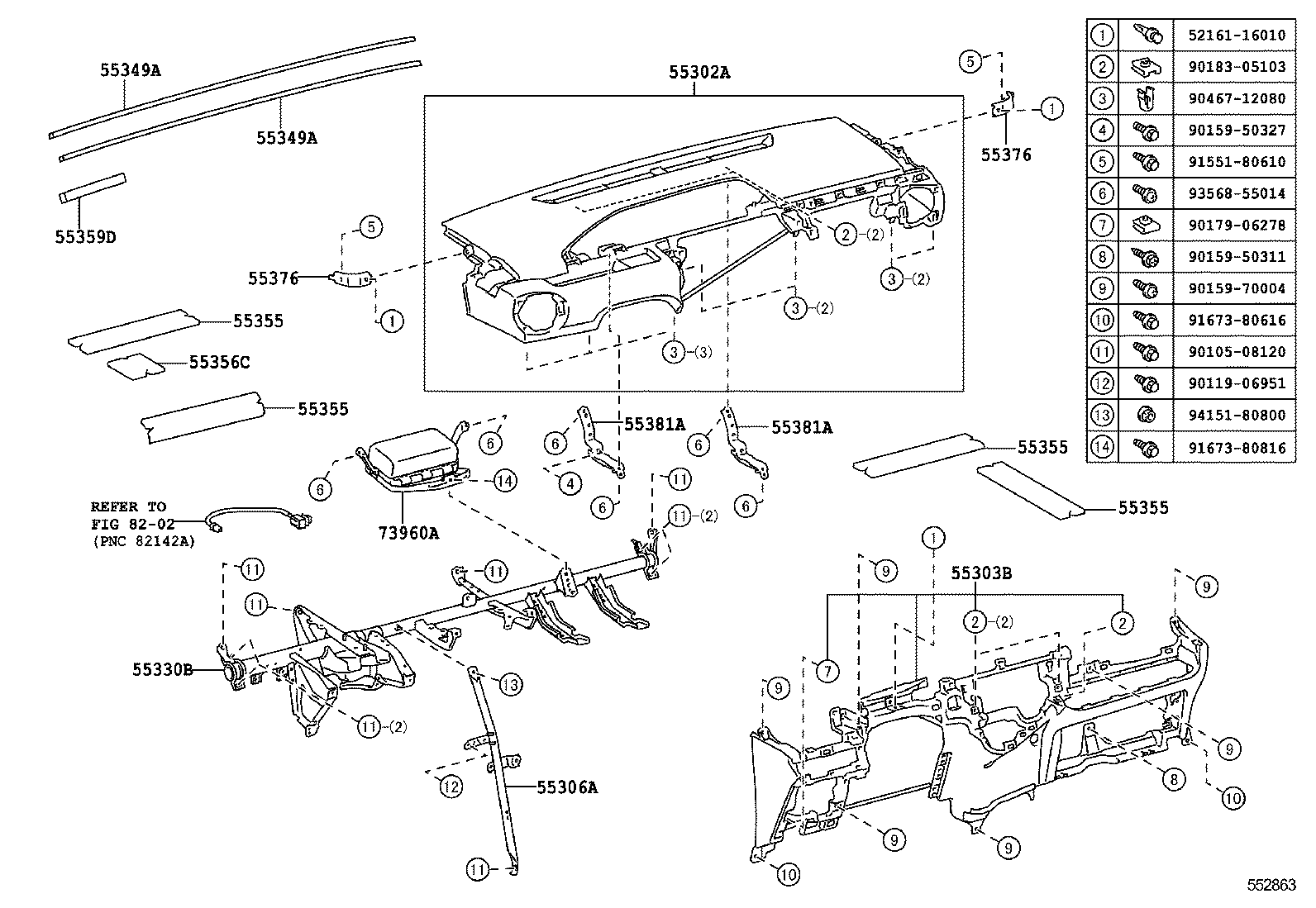

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 1 OF 2(1112-1406)LHD

 PRIUS C |  INSTRUMENT PANEL GLOVE COMPARTMENT  ** Std Part 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55349A - CUSHION, INSTRUMENT PANEL 55349A - CUSHION, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55359D - CUSHION, INSTRUMENT PANEL, NO.5 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55381A - BRACKET, FINISH PANEL MOUNTING 55381A - BRACKET, FINISH PANEL MOUNTING 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
