TOYOTA AGYA WIGO B100RA-GMLFJ / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

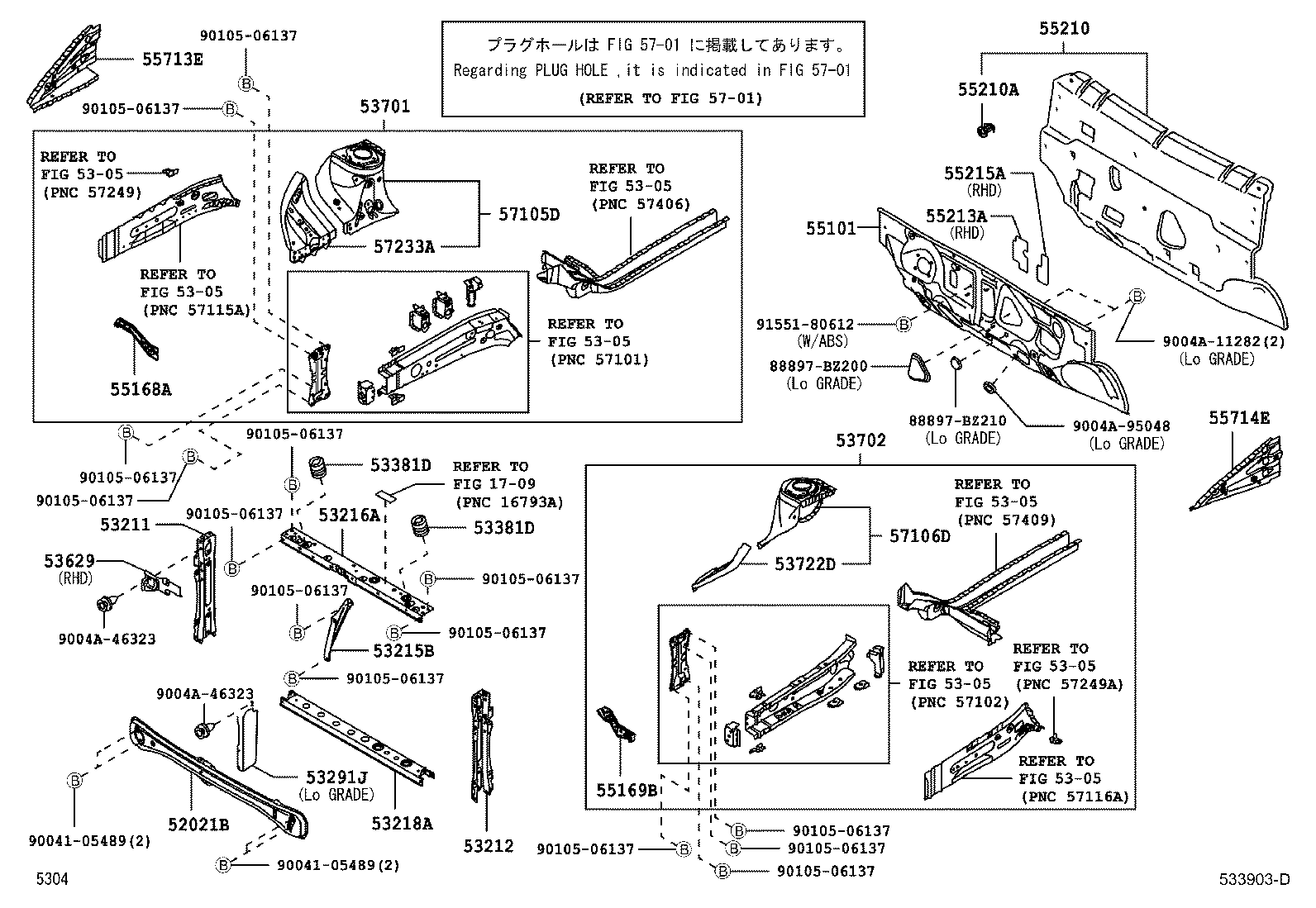

FRONT FENDER APRON DASH PANEL

(1212- )

AGYA WIGO | FRONT FENDER APRON DASH PANEL ** Refer Fig 52021B - REINFORCEMENT SUB-ASSY, FRONT BUMPER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 53211 - SUPPORT, RADIATOR, RH 53212 - SUPPORT, RADIATOR, LH 53215B - SUPPORT, HOOD LOCK 53216A - SUPPORT, RADIATOR, UPPER 53218A - SUPPORT, RADIATOR, LOWER 53291J - SEAL, RADIATOR SUPPORT 53381D - BUMPER, HOOD TO FRONT SHROUD 53381D - BUMPER, HOOD TO FRONT SHROUD 53629 - COVER, HOOD LOCK CONTROL CABLE 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53722D - RETAINER, FENDER APRON, LH 55101 - PANEL SUB-ASSY, DASH 55168A - BRACKET, FRONT FENDER MOUNTING, RH 55169B - BRACKET, FRONT FENDER MOUNTING, LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55213A - PAD, DASH PANEL SILENCER 55215A - PAD, DASH PANEL INSULATOR, NO.3 55713E - PANEL, COWL TOP SIDE, RH 55714E - PANEL, COWL TOP SIDE, LH 57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH 57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH 57233A - RETAINER, ENGINE FRONT SUPPORT, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
