TOYOTA HIGHLANDER KLUGER GSU45R-BRANKQ / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

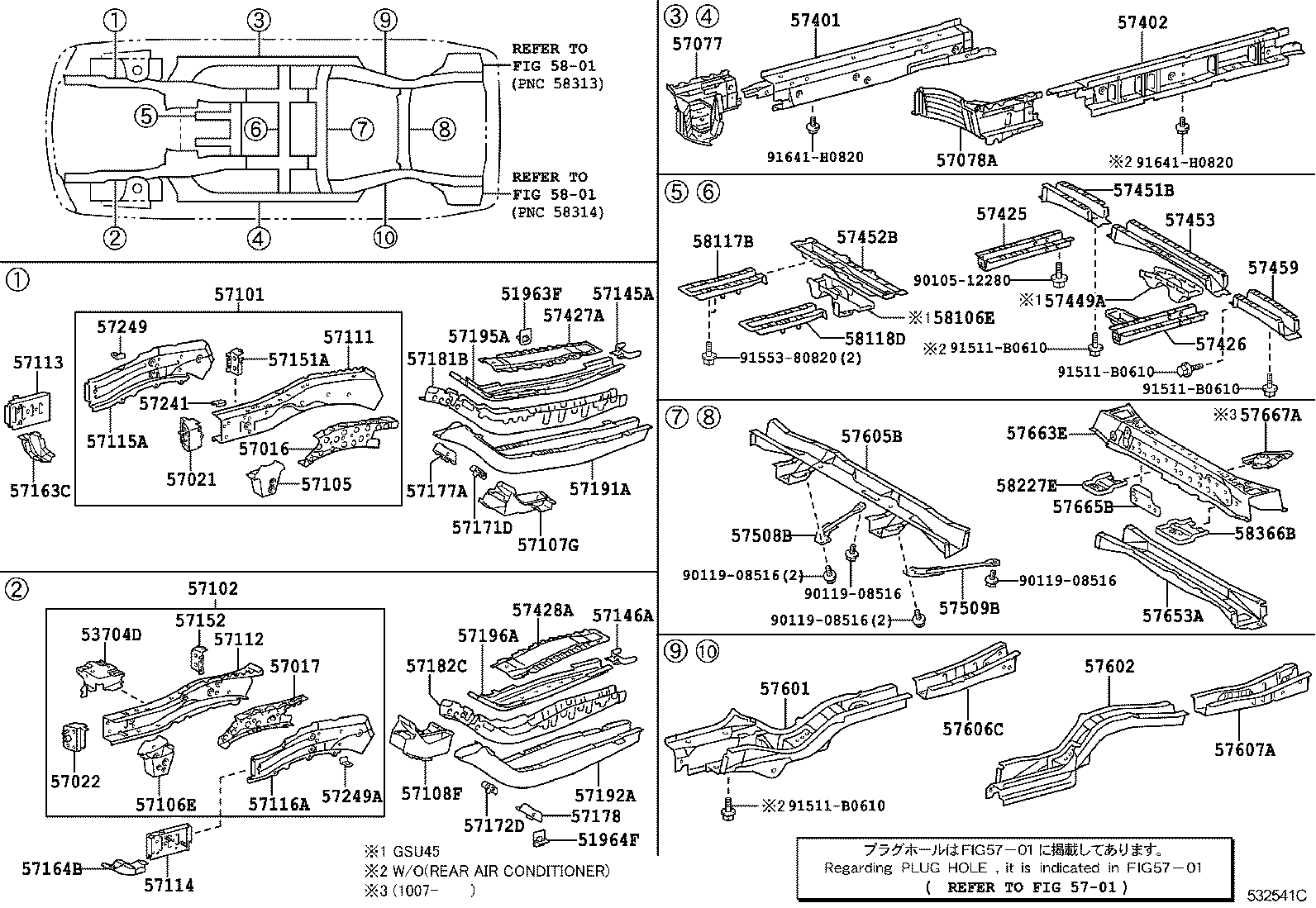

FLOOR SIDE MEMBER

(0705- )

 HIGHLANDER KLUGER |  FLOOR SIDE MEMBER 51963F - HOOK, TRANSPORT 51964F - HOOK, TRANSPORT, LH 53704D - SUPPORT SUB-ASSY, BATTERY, LH ** Refer Fig 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH 57077 - BOX SUB-ASSY, TORQUE, FRONT RH 57078A - BOX SUB-ASSY, TORQUE, FRONT LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57113 - EXTENSION, FRONT SIDE MEMBER, RH 57114 - EXTENSION, FRONT SIDE MEMBER, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57145A - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH 57171D - PLATE, FRONT SIDE MEMBER TO FLOOR, RH 57172D - PLATE, FRONT SIDE MEMBER TO FLOOR, LH 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH 57182C - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH 57191A - MEMBER, FRONT SIDE, INNER REAR RH 57192A - MEMBER, FRONT SIDE, INNER REAR LH 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH 57241 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH 57249 - BRACKET, FLEXIBLE HOSE, NO.1 57249A - BRACKET, FREXIBLE HOUSE, NO.1, LH 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH 57449A - BRACKET, DIFF LOCK LEVER MOUNT, NO.2 57451B - MEMBER, FRONT FLOOR CROSS, RH 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 57508B - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH 57509B - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 57653A - MEMBER, REAR FLOOR CROSS, NO.2 57663E - MEMBER, REAR FLOOR CROSS, CENTER 57665B - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 57667A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4 ** Refer Fig ** Refer Fig 58106E - COVER SUB-ASSY, RESERVE TANK SERVICE HOLE 58117B - REINFORCEMENT, FRONT FLOOR SIDE, RH 58118D - REINFORCEMENT, FRONT FLOOR SIDE, LH 58227E - PLATE, FRONT FLOOR PANEL SIDE, RH 58366B - BRACKET, FUEL TANK SUPPORT, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
