TOYOTA LAND CRUISER 70 VDJ78R-RJMRYQ / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

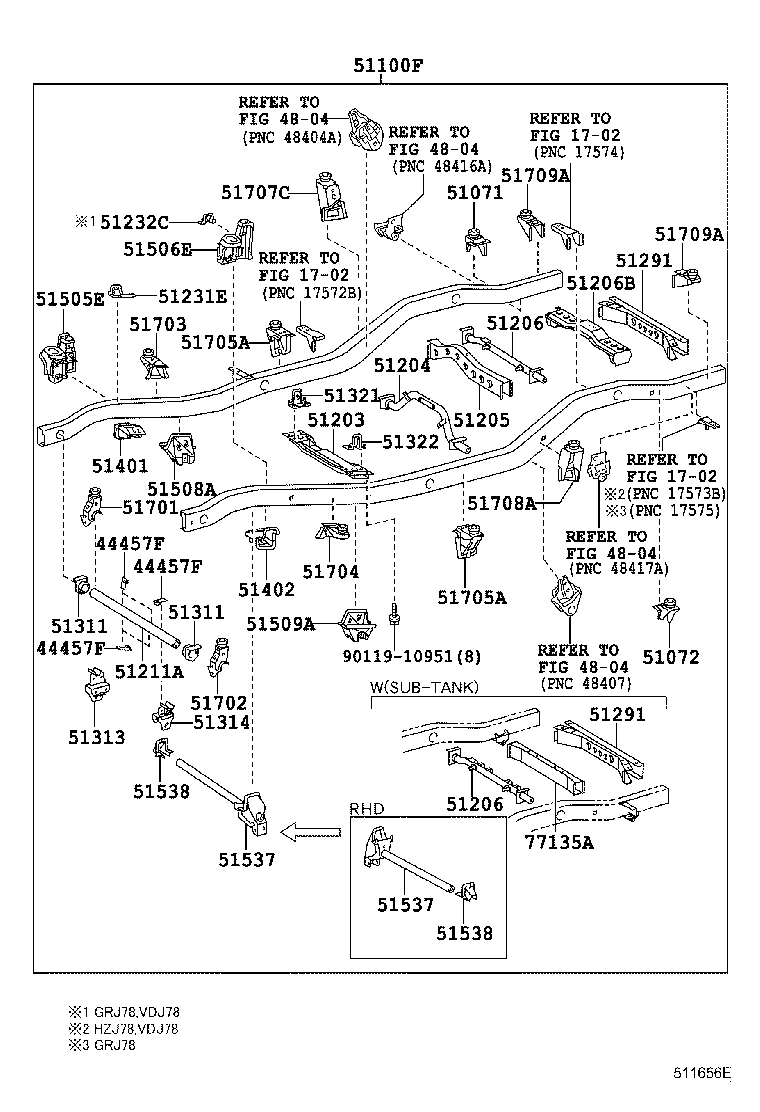

ILLUST NO. 1 OF 2(0701- )FZJ78,GRJ78,HZJ78,VDJ78

 LAND CRUISER 70 |  FRAME ** Refer Fig ** Refer Fig ** Refer Fig 44457F - BRACKET, TUBE SUPPORT 44457F - BRACKET, TUBE SUPPORT 44457F - BRACKET, TUBE SUPPORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH 51100F - FRAME SUB-ASSY 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 51211A - CROSSMEMBER, FRAME, FRONT 51231E - BRACKET, FRONT SHOCK ABSORBER, LH 51232C - BRACKET, FRONT SHOCK ABSORBER, LH 51291 - CROSSMEMBER, FRAME, REAR 51291 - CROSSMEMBER, FRAME, REAR 51311 - GUSSET, FRAME FRONT CROSSMEMBER 51311 - GUSSET, FRAME FRONT CROSSMEMBER 51313 - GUSSET, FRONT FRAME, LOWER RH 51314 - GUSSET, FRONT FRAME, LOWER LH 51321 - GUSSET, CROSSMEMBER, NO.2 RH 51322 - GUSSET, CROSSMEMBER, NO.2 LH 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51505E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH 51506E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH 51508A - BRACKET SUB-ASSY, LOWER ARM, RH 51509A - BRACKET SUB-ASSY, LOWER ARM, LH 51537 - BRACKET, LATERAL ROD SUPPORT 51537 - BRACKET, LATERAL ROD SUPPORT 51538 - STAY, LATERAL ROD SUPPORT 51538 - STAY, LATERAL ROD SUPPORT 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH 51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING 51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING 77135A - PROTECTOR, FUEL TANK SIDE  ** Std Part
